Mars Science Laboratory (MSL)
Software Interface Specification
DAN Reduced Data Record (RDR)
Version 1.0
JPL D-38122
SIS-SCI018-MSL
DATE: October 11, 2012
Prepared by:
Karl Harshman, Lunar and Planetary Laboratory (University of Arizona)
Copyright 2013. All rights reserved.
Signatures
Custodian:
Karl Harshman, UofA Date
Approval:
PDS Geosciences Node Manager ______
Raymond Arvidson Date
Instrument Scientist:
Alberto Behar, JPL Date
OPGS CDE:
Maher Hanna, JPL Date
DAN Accommodation
Engineer Robert Barry, JPL Date
Concurrence:
Principal Investigator:
Igor Mitrofanov, IKI Date
DATE |
SECTIONS CHANGED |
REASON FOR CHANGE |
REVISION |
10/19/11 |
All |
Revision by PDS |
Draft |
1/20/12 |
6 Labels and format files |
Revision by DAN team |
Draft |
2/15/12 |
All |
Remaining questions from PDS |
Draft |
3/19/12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.3 Applicable Documents and Constraints
1.4 Relationships with Other Interfaces
2. Data Product Characteristics and Environment
2.3.4 Labeling and Identification
2.4 Standards Used in Generating Data Products
2.4.8 Data Storage Conventions
3. Detailed Data Product Specifications
3.2 Label and Header Descriptions
4.2 Applicable PDS Software Tools
6. ExampleS of DAN RDR PDS Labels
ASCII |
American Standard Code for Information Interchange |
CODMAC CETN CTN |
Committee on Data Management and Computation Counts of Epithermal Neutrons Counts of Thermal Neutrons |
DAN DE |
Dynamic Albedo of Neutrons DAN Electronics |
EDR FDD |
Experiment Data Record Functional Design Document |
FEI |
File Exchange Interface |
GDS |
Ground Data System |
IOT |
Instrument Operations Team |
JPL LPL MER |
Jet Propulsion Laboratory Lunar and Planetary Laboratory Mars Exploration Rovers |
MIPL |
Multi-mission image Processing Laboratory |
MSL NAIF |
Mars Science Laboratory Navigation and Ancillary Information Facility |
NASA |
National Aeronautics and Space Administration |
ODL |
Object Description Language |
ODS |
MSL’s Operations Data Store |
OPGS |
Operations Products Generation Sub-system |
PDS PHX PNG |
Planetary Data System Mars Phoenix Lander Pulsing Neutron Generator |
RDR |
Reduced Data Record |
RMC |
Rover Motion Counter |
RTO SCLK |
Real Time Operations (MSL terminology) Spacecraft Clock |
SIS |
Software Interface Specification |
TBD |
To Be Defined/Determined |
|
|
The purpose of this Software Interface Specification (SIS) is to provide suppliers and consumers of the Mars Science Lander’s (MSL) Dynamic Albedo of Neutrons (DAN) instrument with a detailed description of DAN’s Reduced Data Records (RDR). It does not cover any lower-level products, which are collectively known as Experimental Data Records (EDR). They will be covered by a separate SIS, provided by the OPGS (JPL).
This SIS includes descriptions of higher order DAN science and the special engineering data products.
The users for whom this SIS is intended for are the scientists who will analyze the data, including those associated with the MSL Project, DAN instrument engineers, and other users in the general planetary science community.
This SIS provides a very high level description of how DAN works/operates. It also describes, at high level, how the DAN data product is acquired by the instrument and how it is processed, formatted, labeled, and uniquely identified on the ground.
The document discusses standards used in generating the product and software tools which may be used to access the information. The data product structure and organization is described in sufficient detail to enable a user to read the product. Finally, an example of the product’s PDS label is provided.
This Data Product SIS is responsive to the following MSL documents:
1. Mars Exploration Program Data Management Plan, Arvidson et al., Rev. 4.0, June 15, 2011.
2. Mars Science Laboratory Archive Generation, Validation and Transfer Plan, Joy Crisp, JPL D-35281, May 28, 2010.
3. Planetary Data System Standards Reference, JPL D-7669 part 2, version 3.8, February 27, 2009.
4. Planetary Archive Preparation Guide, JPL D-31224, Version 1.4, April 1, 2010, http://pds.jpl.nasa.gov/tools/archiving.html.
5. DAN FDD, JPL D-34220, MSL 375-1230
6. Mars Science Laboratory Software Interface Specification DAN Experiment Data Record, JPL D-38113, SIS-SCI1014-MSL, to be completed.
7. Mars Exploration Program Data Management Plan, Arvidson et al., Rev. 4.0, June 15, 2011.
8. MSL DAN Science Team and PDS Geosciences Node Interface Control Document (ICD), Susan Slavney and Alberto Behar, Version 3.0, July 26, 2010.
9. Mars Science Laboratory Dynamic Albedo of Neutrons RDR Archive Volume Software Interface Specification, Karl Harshman, September 28, 2011.
This SIS is meant to be consistent with the contract negotiated between the MSL Project and the Instrument Principal Investigator (PI) in which reduced data records (RDR) and documentation (SIS) are explicitly defined as deliverable products.
Changes to this DAN SIS document will affect the following products, software, and/or documents.
Table 1: Product and Software Interfaces to this SIS
Name
|
Type P-product S-software D-document |
Owner
|
DAN RDRs |
P |
U of A |
DAN_RDR_gen |
S |
U of A |
DAN UA database schema |
P |
U of A |
Other DAN Programs/Products/Documents |
P/S/D |
DAN Science Team |
The
Dynamic Albedo of Neutrons (DAN) is an active/passive neutron spectrometer that
measures the abundance and depth distribution of H- and OH-bearing materials
(e.g., adsorbed water, hydrated minerals) in a shallow layer (~1 m) of Mars'
subsurface along the path of the MSL rover. In active mode, DAN measures the
time decay curve (the "dynamic albedo") of the neutron flux from the
subsurface induced by its pulsing 14 MeV neutron source (Figure
1Figure
1 shows
an example). A detailed description of the DAN instrument and scientific
investigation can be found in Litvak et al. (2008). The experiment is
contributed by the Federal Space Agency of Russia.

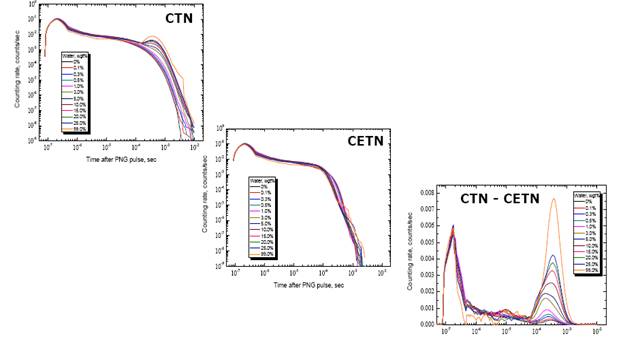

Figure 1: Numerical simulations of the neutron count rate versus time (i.e., die-away curve) for the unshielded (left, CTN) and shielded (middle CETN) detectors as a function of water abundance. The right panel shows the difference between the two count rates.
The science objectives of the DAN instrument are as follows: 1) Detect and provide a quantitative estimation of the hydrogen in the subsurface throughout the surface mission; 2) Investigate the upper <0.5 m of the subsurface and determine the possible layering structure of hydrogen-bearing materials in the subsurface; 3) Track the variability of hydrogen content in the upper soil layer (~1 m) during the mission by periodic analysis; and 4) Track the variability of neutron radiation background (neutrons with energy < 100 keV) during the mission by periodic analysis.
The DAN instrument is expected to be used during rover traverses (e.g., during short stops at ~1 m intervals) and while the rover is parked. Short-duration (< 2 min) measurements will provide a rough estimate of the water-equivalent hydrogen distribution with an accuracy of ~1% by weight. Longer-duration (~30 min) measurements are necessary to derive the vertical distribution of water-equivalent hydrogen with an accuracy of 0.1-0.3% by weight.
DAN performs layering structure analyses of the Martian sub-surface, to measure the distribution of H- and OH-bearing materials, with a vertical resolution of < 1 m and horizontal resolutions of 0.5 - 100 m along the path of the rover.
DAN has three different modes of operations: Standby, Passive, and Active.
· STANDBY: Low voltage electronics are on, no science observations.
· PASSIVE: Background observations collected
· ACTIVE: Neutron pulses are produced and science observations collected.
Figure 2: DAN PNG, Pulsing Neutron Generator
Figure 3: DE, DAN Detector

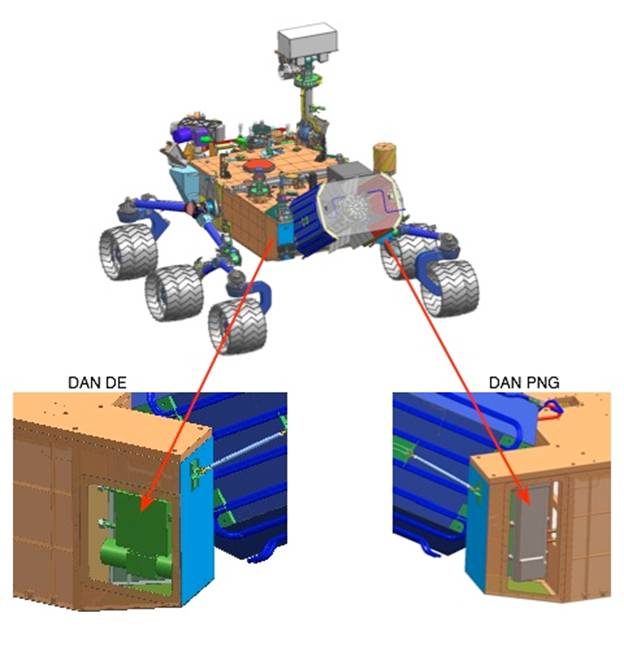

Figure 4: Location of DAN DE and PNG on rover
DAN’s Reduced Data Records (RDR), NASA Level 1-A and 1B products, are generated by the DAN Team from the EDR data products, which are produced by OPGS at JPL.
DAN RDRs consist of clusters of calibrated data records, time-ordered, and grouped together. Each RDR will have a unique PDS label file, also known as a PDS detached label, which provides all the Meta and Ancillary data for each DAN data product. The pair of files, DAN binary data, and its PDS label, is collectively referred to as an RDR. In other words, an RDR is always made up of two files, named identically with only different file extensions, “.DAT” and “.LBL”.
As part of the RDR generation, older RDRs are replaced by newer and better calibrated versions. Since RDRs are generated from EDRs, if new EDRs become available RDRs may need to be regenerated. A regenerated version is identified in the product's PDS label by an incremented product version ID and a later product generation time.
The DAN RDR data set is assigned the PDS Data Set ID "MSL-M-DAN-3/4-RDR-V1.0". The processing level numbers are from the “Committee on Data Management and Computation (CODMAC) data level numbering system (Table 2).
Table 2: Processing Levels for Science Data Sets
NASA |
CODMAC |
Description |
|
Packet data |
Raw - Level 1 |
Telemetry data stream as received at the ground station, with science and engineering data embedded. |
|
Level-0 |
Edited - Level 2 |
Instrument science data (e.g., raw voltages, counts) at full resolution, time ordered, with duplicates and transmission errors removed. |
|
Level 1-A |
Calibrated - Level 3 |
Level 0 data that have been located in space and may have been transformed (e.g., calibrated, rearranged) in a reversible manner and packaged with needed ancillary and auxiliary data (e.g., radiances with the calibration equations applied). |
|
Level 1-B |
Resampled - Level 4 |
Irreversibly transformed (e.g., resampled, remapped, calibrated) values of the instrument measurements (e.g., radiances, magnetic field strength). |
|
Level 1-C |
Derived - Level 5 |
Level 1A or 1B data that have been resampled and mapped onto uniform space-time grids. The data are calibrated (i.e., radiometrically corrected) and may have additional corrections applied (e.g., terrain correction). |
|
Level 2 |
Derived - Level 5 |
Geophysical parameters, generally derived from Level 1 data, and located in space and time commensurate with instrument location, pointing, and sampling. |
|
Level 3 |
Derived - Level 5 |
Geophysical parameters mapped onto uniform space-time grids. |
|
The DAN RDR data products will be generated by the University of Arizona using the data processing software, DAN_RDR_gen. The RDR data products will be calibrated data derived from EDR data products and formatted according to this RDR SIS.
Data derived using SPICE kernels will be included in the RDR data products
The DAN RDR data products generated by the U of A will be created from EDR products provided from OPGS through MIPL’s File Exchange Interface (FEI) system and data derived using SPICE kernels acquired from NAIF. After a data validation period, the DAN RDR data products will be delivered to the Planetary Data System on a pre-determined schedule.
The DAN RDRs will be generated at least one month prior to the scheduled delivery date. The DAN RDR data will be reprocessed if new EDR data are received or if better calibrations are available.
The total estimated volume of the RDRs over the course of the MSL mission is 1 Gigabyte.
There is a file-naming scheme adopted for the MSL image and non-image data products. The scheme applies to the EDR and RDR data products. The file naming schemes adhere to the Level II 36.3 filename convention approved by PDS in 2009.
The primary attributes of the filename nomenclature are:
a) Uniqueness - It must be unique unto itself without the file system’s directory path. This
protects against product overwrite as files are copied/moved within the
file system and external to the file system, if managed correctly.
b) Metadata - It should be comprised of metadata fields that keep file bookkeeping and
sorting intuitive to the human user. Even though autonomous file processing
will be managed via databases, there will always be a human-in-the-loop that
puts a premium on filename intuition. Secondly, the metadata fields should
be smartly selected based on their value to ground processing tools, as it is
less CPU-intensive to extract information from the filename than from the
label.
NOTE: The metadata information in the filename also resides in the product label.
The metadata fields have been selected based on MER and PHX lessons learned. In general, the metadata fields are arranged to achieve:
a) Sortability - At the beginning of the filename resides a primary time oriented field such as
Spacecraft Clock Start Count (SCLK). This allows for sorting of files on the
MSL file system by spacecraft data acquisition time as events occurred on
Mars.
b) Readability - An effort is made to alternate integer fields with ASCII character fields to
optimize differentiation of field boundaries for the human user.
Each DAN product has a detached PDS label associated with the DAN data file. The file-naming scheme for the DAN data products is:
where, |
|||||||||||||||
Instr |
= |
(2 alpha character) Instrument ID, denoting the source MSL science or engineering instrument that acquired the data. Valid values for Instrument ID’s are: ”DN” - DAN |
|||||||||||||
Config |
= |
(1 alphanumeric) Instrument Configuration, an operational attribute of the Instrument that assists in characterizing the data. Valid values: |
|||||||||||||
|
Instrument |
Configuration |
|||||||||||||
Values |
Description |
||||||||||||||
|
DAN (“DN”) |
it is being set to either “A” or “B” |
A-side configuration, B-side configuration |
||||||||||||
|
|
||||||||||||||
spec
|
= |
(1 character) Special Processing flag, applicable to RDRs on a case-by-case basis. |
|||||||||||||
|
Special Processing |
EDR Value |
RDR Value |
|
|||||||||||
|
None know |
“_” |
“_” |
|
|||||||||||
|
Special method types A - Z |
n/a |
“A” - “Z” |
|
|||||||||||
|
|
||||||||||||||
sclk |
= |
(9 alphanumeric) Spacecraft Clock Start Count, in units of seconds. Which specific SCLK is used depends on the instrument but is generally expected to be the time the data was acquired. For the DAN EDRs the SCLK provided in the .emd (Data product metadata file) file will be used.
|
|||||||||||||
|
The valid values, in their progression, are as follows (non-Hex): Range 000000000 thru 999999999 - “000000000”, “000000001”, … “999999999” Range 1000000000 thru 1099999999 - “A00000000”, “A00000001”, … “A99999999” Range 1100000000 thru 1199999999 - “B00000000”, “B00000001”, … “B99999999” · · · Range 3500000000 thru 3599999999 - “Z00000000”, “Z00000001”, … “Z99999999” |
||||||||||||||
|
|
||||||||||||||
prod |
= |
(3 char) Product Type identifier. This field has the following rule-of-thumb: Beginning "E" - Type of EDR, which is a raw data product. Beginning “R” - Type of RDR, which is a reduced product.
|
|||||||||||||
|
Valid values for DAN Product identifiers are listed below: |
||||||||||||||
|
Product Type Description |
Value |
|||||||||||||
|
Active EDR |
“EAC” |
|||||||||||||
|
Passive EDR |
“EPA” |
|||||||||||||
|
Standby EDR |
“EST” |
|||||||||||||
|
Derived Engineering RDR |
“REN” |
|||||||||||||
|
Derived Passive RDR |
“RPA” |
|||||||||||||
|
Derived Active RDR |
“RAC” |
|||||||||||||
|
Averaged Passive RDR |
“RAP” |
|||||||||||||
|
Averaged Active RDR |
“RAA” |
|||||||||||||
sol |
= |
NOTE: If the first character is an underscore (“_”) then the remaining 3 characters denote the day of year (DOY). This format will be used during cruise. |
|
||||||||||||
|
The valid values, in their progression, are as follows (non-Hex): Range 0000 thru 9999 - “0000”, “0001”, … “9999” Range 10000 thru 10999 - “A000”, “A001”, … “A999” Range 11000 thru 11999 - “B000”, “B001”, … “B999” · · · Range 35000 thru 35999 - “Z000”, “Z001”, … “Z999” |
|
|||||||||||||
site |
= |
(3 alphanumeric) Site location count, from the RMC. This field has the following rules-of-thumb: If value is any 3 alphanumeric characters then content represents Site index extracted from RMC, or 3 underscores (denoting value is out-of-range),.
|
|||||||||||||
|
The valid Site values, in their progression, are as follows (non-Hex): Range 000 thru 999 - “000”, “001”, … “999” Range 1000 thru 1099 - “A00”, “A01”, … “A99” Range 1100 thru 1199 - “B00”, “B01”, … “B99” · · · Range 3500 thru 3599 - “Z00”, “Z01”, … “Z99” |
||||||||||||||
drive |
= |
(4 alphanumeric) Drive (position-within-Site) location count, from the Rover Motion Counter (RMC). This field has the following rules-of-thumb: If value is any 4 alphanumeric charactersthen content represents Drive index extracted from RMC, or 4 underscores (denoting value is out-of-range),.
|
|||||||||||||
|
The valid Drive values, in their progression, are as follows (non-Hex): Range 0000 thru 9999 - “0000”, “0001”, … “9999” Range 10000 thru 10999 - “A000”, “A001”, … “A999” Range 11000 thru 11999 - “B000”, “B001”, … “B999” · · · Range 35000 thru 35999 - “Z000”, “Z001”, … “Z999” Range 36000 thru 36099 - “AA00”, “AA01”, … “AA99” Range 36100 thru 36199 - “AB00”, “AB01”, … “AB99” · · · Range 38500 thru 38599 - “AZ00”, “AZ01”, … “AZ99” Range 38600 thru 38699 - “BA00”, “BA01”, … “BA99” Range 38700 thru 38799 - “BB00”, “BB01”, … “BB99” · · · Range 41100 thru 41199 - “BZ00”, “BZ01”, … “BZ99” Range 41200 thru 41299 - “CA00”, “CA01”, … “CA99” · · · Range 65400 thru 65499 - “LI00”, “LI01”, … “LI99” Range 65500 thru 65535 - “LJ00”, “LJ01”, … “LJ35” |
||||||||||||||
req id |
= |
(7 alphanumeric) - Request ID In the case of DAN this files is currently not being used, and therefore it will always have a value of all underscores (“_______”). It is maintained as a placeholder, and to maintain consistency with MSL file-naming nomenclature. Valid values: “_______” – N/A. a) |
|||||||||||||
who |
= |
(1 alpha character) Product Producer ID identifies the institution that generated the product. This field has the following rules-of-thumb: Producer - If value is “P” (for Flight) or “Y” (for Engineering), the provider of the product is the Principal Investigator. Except for MIPL as the provider (“M” for Flight or “Z” for Engineering), the remaining characters are assigned to Co-investigator providers at the discretion of the P.I. and will be identified in due time. Within the instrument of the P.I., characters are unique. Across instruments, characters are reusable. See the following table of valid values: |
|||||||||||||
|
Venue |
by Producer |
|||||||||||||
|
Flight Model |
Eng. Model |
|||||||||||||
|
“M” |
“Z” |
MIPL (OPGS at JPL) |
||||||||||||
|
“P” |
“Y” |
Principal Investigator of Instrument … |
||||||||||||
|
|
|
Instrument Principal Investigator SAM GSFC (Goddard, MD) REMS Ministry of Education & Science (Spain) DAN Federal Space Agency (Russia) RAD SwRI (Boulder, CO) CheMin Ames Research Center (Mountain View, CA) APXS Max-Planck Institute (Germany) SA/SPaH JPL |
||||||||||||
|
“A” - “L” |
“Q” - “X” |
Co-Investigators (to be identified by P.I. per instrument) A for UA generated. |
||||||||||||
ver |
= |
(1 alphanumeric) Version identifier. |
|||||||||||||
|
The valid values, in their progression, are as follows (non-Hex): Range 1 thru 10 - “1”, “2”, … “9”, “0” Range 11 thru 36 - “A”, “B”, … “Z” Range 37 and higher - “_” (underscore) The Version number increments by one whenever an otherwise-identical filename would be produced. Note that not every version need exist, e.g. versions 1, 2 and 4 may exist but not 3. In general, the highest-numbered Version represents the “best” version of that product. NOTE: To be clear, this field increments independently of all fields, including the Special Processing field. |
||||||||||||||
= |
(2 to 3 alpha characters) Product type extension. |
||||||||||||||
|
Valid values for nominal operations data products: |
||||||||||||||
“DAT” “LBL”
|
- -
|
Non-imaging binary instrument data Detached label in PDS format
|
|||||||||||||
Example #1: DNA_351797691RPA_0550000000_______P1.DAT |
||||
Where, |
||||
instr config spec sclk prod sol site drive reqestID who ver ext |
= = = = = = = = = = = = |
“DN” “A” “_” “_” “RPA” “_055” “000” “0000” “_______” “P” “1” “DAT” |
= = = = = = = = = = = = |
DAN TBD (Instrument configuration for now) TBD Spacecraft Clock Start Count of 351797691 sec. “R”-RDR, “PA”-Passive Day-of-Year 55 (Cruise) Site 0 Position (Drive) 0 unused Produced by LPL at the University of Arizona Version 1 Indicates this file contains data, and not label info (LBL). |
The DAN data product complies with PDS standards for file formats and labels, as specified in the PDS Standards Reference .(Applicable Document 3)
The following time standards and conventions are used throughout this document, as well as the MSL project for planning activities and identification of events.
Time Format |
Definition |
SCET |
Spacecraft event time. This is the time when an event occurred on-board the spacecraft, in UTC. It is usually derived from SCLK. |
SCLK |
Spacecraft Clock. This is an on-board 64-bit counter, in units of nano-seconds and increments once every 100 milliseconds. Time zero corresponds to midnight on 1-Jan-1980. |
ERT |
Earth Received Time. This is the time when the first bit of the packet containing the current data was received at the Deep Space (DSN) station. Recorded in UTC format. |
Local Solar Time |
Local Solar Time (LST). This is the local solar time defined by the local solar days (sols) from the landing date using a 24 “hour” clock within the current local solar day (HR:MN:SC). Since the Mars day is 24h 37m 22s long, each unit of LST is slightly longer than the corresponding Earth unit. LST is computed using positions of the Sun and the landing site from SPICE kernels. If a landing date is unknown to the program (e.g. for calibration data acquired on Earth) then no sol number will be provided on output LST examples: SOL 12 12:00:01 SOL 132 01:22:32.498 SOL 29 |
RCT |
Record Creation Time. This is the time when the first telemetry packet, containing a give data, set was created on the ground. Recorded in UTC format.
|
True Local Solar Time |
This is related to LST, which is also known as the mean solar time. It is the time of day based on the position of the Sun, rather than the measure of time based on midnight to midnight “day”. TLST is used in all MIPL/OPGS generated products. |
SOL |
Solar Day Number, also known as PLANET DAY NUMBER in PDS label. This is the number of complete solar days on Mars since landing. The landing day therefore is SOL zero. |
The following coordinate systems are used within the project to refer to the position of the Rover and its instruments.
Coordinate System |
Origin |
Orientation |
Local Level |
Same as payload frame, and it moves with the Rover |
+X North +Z down along gravity vector +Y East |
Payload Frame |
At the shoulder of the Robotic Arm. Attached and moves with the Rover |
+X along Rover –X ( point out into the work space) +Z down along Rover (vertical axis) +Y along Rover -Y
|
Site Frame |
Same as payload frame when first defined and never moves relative to Mars. Possible to define multiple site frames in case the Rover moves/slips. |
Same as local level |
Rover Frame |
Attached to Rover |
Attached to Rover |
DAN RDR products will be stored as binary files containing IEEE floating-point values, big-endian integers and ASCII character strings. For every DAN RDR there will be a detached PDS label file. The detached PDS labels for DAN RDRs are stored as ASCII text, with each keyword definition terminated by ASCII carriage-return and line-feed characters. The RDR products are defined in section 5. The PDS label keywords are described in Appendix-A.
Each DAN RDRs will contain fixed length records but the length can differ depending on the type of RDR. When necessary, records will be padded with extra bytes of 0x00. Label keywords will provide necessary information to determine the size and organization of the binary records.
The DAN RDRs, as with all other MSL RDRs, are subject to PDS peer review.
Validation of DAN RDR products during production will be performed according to specifications in the MSL Archive Plan. The DAN Team will validate the science content of the data products, and the PDS Geosciences Node will validate the products for compliance with PDS standards and for conformance with the design specified in this SIS.
Validation of the MSL RDRs will fall into two primary categories: automated and manual. Automated validation will be performed on every RDR product produced for the mission. Manual validation will only be performed on a subset.
Validation of DAN RDRs will be performed by the DAN Team as a part of the archiving process, and will be done simultaneously with the archive volume validation. Validations performed will include such things as verification that the checksum in the label matches a calculated checksum for the data product (i.e., that the data product included in the archive is identical to that produced by the real-time process), a validation of the PDS syntax of the label, a check of the label values against the database and against the index tables included on the archive volume, and checks for internal consistency of the label items. The latter include such things as verifying that the product creation date is later than the earth received time. As problems are discovered and/or new possibilities identified for automated verification, they will be added to the validation procedure.
Manual validation of the data will be performed both as spot-checking of data throughout the life of the mission, and comprehensive validation of a subset of the data (for example, a couple of days' worth of data). A human will view these products. The DAN Team will validate the science content of the data products, and the PDS Geosciences Node will validate the products for compliance with PDS standards and for conformance with the design specified in this SIS.
When powered, the DAN instrument is in one of three states: STANDBY, PASSIVE, or ACTIVE. Onboard, the DAN instruments can generate different data packets depending on the state of the instrument.
Five RDR products will be produced, DERIVED_ENG, DERIVED_PASSIV, DERIVED_ACTIVE, AVERAGED_PASSIV and AVERAGED_ACTIVE Each is defined in the following sections. The DAN RDR file naming convention will uniquely identify each data product. See Section 2.3.4 for detail description of the DAN file naming convention.
The structure of the DAN RDR consists of a detached ASCII PDS label and a binary data file as shown in Figure 3.1.
Detached ASCII PDS Label |
DAN Binary Data File () |
Figure 3.1: The DAN RDR consists of two files.
Appendix A includes the table for binary data column definitions to the byte level.
Derived Engineering are the raw DN values from the 6 temperature sensors converted to Celsius. Each EDR record contains these temperatures and therefore a time series dataset can be constructed over the entire time DAN is operating. This data product also contains the states of the two high voltages for the detectors and also the two discriminator values for each of the two detectors (CTN and CETN).
The Derived Passive data products are in a one to one correspondence with the EDR Passive data products. Each data product has counts for each detector summed over channels 1 to 16 and background counts for the collection period as well as location and time information.
The Derived Active data set is in a one to one correspondence with the EDR Active data set. This data set has the detector counts summed over channels 1 to 16 for each of the 64 spectra in the EDR set. It also contains the background counts for each of the 64 spectra as well as location and time information.
An Averaged Passive data product contains the average counts over some time period of passive measurements. Derived Passive data products are used to calculate the average of the given time period. The time periods will coincide with passive measurements during a travser from location A to location B. This data product also contains the background counts for the given time period as well as an error and normalization factor. It also contains spatial and temporal information over which the data was taken.
An Averaged Active data product contains the average counts over some time period of active measurements. The Derived Active data products are used to calculate the average of the given time period. The time periods will coincide with active measurements during a time the rover is stopped. This data product also contains the background counts for the given time period as well as an error and normalization factor. It also contains spatial and temporal information over which the data was taken.
DAN products have detached PDS labels. A PDS label is object-oriented and describes the objects in the data file. The PDS label contains keywords for product identification and for table object definitions. The label also contains descriptive information needed to interpret or process the data objects in the file.
PDS labels are written in Object Description Language (ODL). PDS label statements have the form of "keyword = value". Each label statement is terminated with a carriage return character (ASCII 13) and a line feed character (ASCII 10) sequence to allow the label to be read by many operating systems. Pointer statements with the following format are used to indicate the location of data objects in the file:
^Object = location
where the carat character (^, also called a pointer) is followed by the name of the specific data object. The location is the starting record number for the data object within the file.
Each PDS keyword defined for the DAN label will always be included in the label. If a keyword does not have a value, a value of N/A will be given as the keyword value.
Per PDS rules, “N/A” is used when a keyword exists, but it does not apply to a particular data, and “UNKNOWN” or UNK is used when a value of an applicable keyword cannot be determined at the time the PDS label was generated.
The TABLE object is a uniform collection of rows containing ASCII or binary values stored in columns. The INTERCHANGE_FORMAT keyword is used to distinguish between TABLEs containing only ASCII columns and those containing binary data. DAN RDR products are stored as binary tables. Each field is defined as a fixed-width COLUMN object; the value of the COLUMNS keyword is the total number of COLUMN objects defined in the label. All TABLE objects must have fixed-width records.
None
PDS-labeled images and tables can be viewed, but not manipulated with the program NASAView, developed by the PDS Engineering Node, and are available for a variety of computer platforms. They can be obtained directly from the PDS at http://pds.nasa.gov/tools/nasa-view.shtml.
This table lists the columns in all DAN RDR data files in alphabetical order. The format of each type of data file, including column positions, sizes, data types, units, and full descriptions, can be found in the format files (*.FMT) in the LABEL directory.
Column Name |
Data Type |
Length in bytes |
Description |
Appears In |
BEGIN_LATITUDE |
IEEE_REAL |
4 |
"Latitude in Mars fixed coordinates at the beginning of the frame." |
DP, AP, AA |
BEGIN_LONGITUDE |
IEEE_REAL |
4 |
"Longitude in Mars fixed coordinates at the beginning of the frame." |
DP, AP, AA |
CETN_AVERAGE |
IEEE_REAL |
4 |
"Average counts for CETN detector over collection duration." |
AP, AA |
CETN_BKGD |
IEEE_REAL |
4 |
"Background counts for CETN detector (counts)." |
DP, DA, AP, AA |
CETN_COUNTS |
IEEE_REAL |
4 |
"Counts gathered in CETN detector during frame interval." |
DP, DA |
CETN_ERROR |
IEEE_REAL |
4 |
"Error in counts in CETN detector over collection duration." |
AP, AA |
CETN_NORM |
IEEE_REAL |
4 |
"Normalization in counts for CETN detector for collection duration." |
AP, AA |
COLLECTION_DURATION |
MSB_UNSIGNED_INTEGER |
4 |
"Value of collection time in seconds." |
DP, AA, AP, DA |
CTN_AVERAGE |
IEEE_REAL |
4 |
"Average Counts in CTN detector over duration." |
AP, AA |
CTN_BKGD |
IEEE_REAL |
4 |
"Background counts for CTN detector (counts)." |
DP, DA, AP, AA |
CTN_COUNTS |
IEEE_REAL |
4 |
"Counts gathered in CTN detector during frame interval." |
DP, DA |
CTN_ERROR |
IEEE_REAL |
4 |
"Error in counts in CTN detector over duration." |
AP, AA |
CTN_NORM |
IEEE_REAL |
4 |
"Normalization in counts for CTN detector over duration." |
AP, AA |
DAN_TIME |
MSB_UNSIGNED_INTEGER |
4 |
"DAN instrument time in milliseconds since last power up." |
DP, DE |
DSC_LEVEL_CETN |
MSB_UNSIGNED_INTEGER |
1 |
"The CETN Discriminator level 0 = low, 1 = high." |
DE |
DSC_LEVEL_CTN |
MSB_UNSIGNED_INTEGER |
1 |
"The CTN Discriminator level 0 = low, 1 = high." |
DE |
END_DAN_TIME |
MSB_UNSIGNED_INTEGER |
4 |
"DAN time at end of collection in milliseconds." |
DA, AP, AA |
END_LATITUDE |
IEEE_REAL |
4 |
" Planetocentric Latitude in Mars fixed coordinates at the end of the frame." |
DP, AA, AP |
END_LONGITUDE |
IEEE_REAL |
4 |
" Planetocentric east Longitude in Mars fixed coordinates at the end of the frame." |
DP, AP, AA |
END_UTC |
CHARACTER |
23 |
"UTC time at the end of the collection interval, stored as yyyy-mm-ddThh:mm:ss.sss." |
DP, DA, AP, AA |
HV_LEVEL_CETN |
MSB_UNSIGNED_INTEGER |
1 |
"The CETN HV level 0 = off, 2 = high, 3 = low." |
DE |
HV_LEVEL_CTN |
MSB_UNSIGNED_INTEGER |
1 |
"The CTN HV level 0 = off, 2 = high, 3 = low." |
DE |
LATITUDE |
IEEE_REAL |
4 |
" Planetocentric Latitude in Mars fixed coordinates." |
DA |
LONGITUDE |
IEEE_REAL |
4 |
" Planetocentric east Longitude in Mars fixed coordinates." |
DA |
NUM_PNG_PULSES |
IEEE_REAL |
4 |
"Number of PNG pulses during data collection interval." |
DA, AA |
PNG_FREQUENCY |
MSB_UNSIGNED_INTEGER |
1 |
"Pulsing Neutron Generator frequency of pulsing in counts." |
DA, AA |
START_DAN_TIME |
MSB_UNSIGNED_INTEGER |
4 |
"DAN time at beginning of interval in milliseconds." |
DA, AP, AA |
START_UTC |
CHARACTER |
23 |
"UTC time at the start of the collection interval, stored as yyyy-mm-ddThh:mm:ss.sss." |
DP, DA, AP, AA |
TEMP1 |
IEEE_REAL |
4 |
"PNG temperature in Celsius." |
DE |
TEMP2 |
IEEE_REAL |
4 |
" High voltage board temperature in Celsius." |
DE |
TEMP3 |
IEEE_REAL |
4 |
" FPGA temperature in Celsius." |
DE |
TEMP4 |
IEEE_REAL |
4 |
" Analog board #1 temperature in Celsius." |
DE |
TEMP5 |
IEEE_REAL |
4 |
" Analog board #2 temperature in Celsius." |
DE |
TEMP6 |
IEEE_REAL |
4 |
" Case temperature in Celsius." |
DE |
TIME_BIN_DURATION |
IEEE_REAL |
4 |
"Duration in microseconds for each time bin." |
DA, AA |
TIME_BIN_START |
IEEE_REAL |
4 |
"Start time in microseconds for each time bin." |
DA, AA |
UTC |
CHARACTER |
23 |
"UTC time at the start of the collection interval, stored as yyyy-mm-ddThh:mm:ss.sss." |
DE |
PDS_VERSION_ID = PDS3
/* FILE DATA ELEMENTS */
RECORD_TYPE = FIXED_LENGTH
RECORD_BYTES = 5663
FILE_RECORDS = 21
/* IDENTIFICATION DATA ELEMENTS */
DATA_SET_ID = "MSL-M-DAN-3/4-RDR-V1.0"
COMMAND_SEQUENCE_NUMBER = 0
INSTRUMENT_HOST_ID = MSL
INSTRUMENT_HOST_NAME = "MARS SCIENCE LABORATORY"
INSTRUMENT_NAME = "DYNAMIC ALBEDO OF NEUTRONS"
MSL:REQUEST_ID = 4932
PLANET_DAY_NUMBER = "42"
PRODUCT_CREATION_TIME = 2010-10-27T22:19:47.000
PRODUCT_ID = "DNA_351797691REN_0550000000_______P1.DAT"
PRODUCT_TYPE = DAN_RDR_EN
PRODUCT_VERSION_ID = "1.0"
RELEASE_ID = "1"
ROVER_MOTION_COUNTER = (0,0,0,0,0,0,0,0)
ROVER_MOTION_COUNTER_NAME = (SITE, DRIVE, POSE, ARM, CHIMRA,
DRILL, RSM, HGA)
SEQUENCE_ID = "1036288"
SEQUENCE_VERSION_ID = "0"
SPACECRAFT_CLOCK_START_COUNT = "340477575.18840"
SPACECRAFT_CLOCK_STOP_COUNT = "340563425.23451"
START_TIME = 2012-289T05:10:16.868
STOP_TIME = 2012-289T06:04:10.232
TARGET_NAME = MARS
^TABLE = "DNA_351797691REN_0550000000_______P1 .DAT"
OBJECT = TABLE
COLUMNS = 1213
INTERCHANGE_FORMAT = BINARY
ROW_BYTES = 5663
ROWS = 21
DESCRIPTION = "
This table contains converted engineering data
as observed by the Mars Science Laboratory (MSL) Dynamic Albedo of
Neutron Detector (DAN).
Detailed descriptions for the parameters defined below are
contained in the DAN RDR SIS document .
The complete column definitions are contained in the following external
file found in the LABEL directory of the archive volume.
"
^STRUCTURE = "DAN_RDR_DERIVED_ENG.FMT"
END_OBJECT = TABLE
END
6.1.1 Derived Engineering FORMAT FILE ("DAN_RDR_DERIVED_ENG.FMT")
OBJECT = COLUMN
COLUMN_NUMBER = 1
NAME = DAN_TIME
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 4
START_BYTE = 1
UNIT = MILLISECONDS
DESCRIPTION = "DAN instrument time in milliseconds since last power up."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 2
NAME = UTC
DATA_TYPE = CHARACTER
BYTES = 23
START_BYTE = 5
DESCRIPTION = "UTC time at the start of the collection interval,
stored as yyyy-mm-ddThh:mm:ss.sss."
END_OBJECT = COLUMN
OBJECT = COLUMN
NAME = TEMP1
COLUMN_NUMBER = 3
BYTES = 4
DATA_TYPE = IEEE_REAL
START_BYTE = 28
UNIT = "DEGREES CELSIUS"
DESCRIPTION = "PNG temperature in Celsius."
END_OBJECT = COLUMN
OBJECT = COLUMN
NAME = TEMP2
COLUMN_NUMBER = 4
BYTES = 4
DATA_TYPE = IEEE_REAL
START_BYTE = 32
UNIT = "DEGREES CELSIUS"
DESCRIPTION = "High voltage board temperature in Celsius."
END_OBJECT = COLUMN
OBJECT = COLUMN
NAME = TEMP3
COLUMN_NUMBER = 5
BYTES = 4
DATA_TYPE = IEEE_REAL
START_BYTE = 36
UNIT = "DEGREES CELSIUS"
DESCRIPTION = "FPGA temperature in Celsius.."
END_OBJECT = COLUMN
OBJECT = COLUMN
NAME = TEMP4
COLUMN_NUMBER = 6
BYTES = 4
DATA_TYPE = IEEE_REAL
START_BYTE = 40
UNIT = "DEGREES CELSIUS"
DESCRIPTION = "Analog board #1 temperature in Celsius."
END_OBJECT = COLUMN
OBJECT = COLUMN
NAME = TEMP5
COLUMN_NUMBER = 7
BYTES = 4
DATA_TYPE = IEEE_REAL
START_BYTE = 44
UNIT = "DEGREES CELSIUS"
DESCRIPTION = "Analog board #2 temperature in Celsius."
END_OBJECT = COLUMN
OBJECT = COLUMN
NAME = TEMP6
COLUMN_NUMBER = 8
BYTES = 4
DATA_TYPE = IEEE_REAL
START_BYTE = 48
UNIT = "DEGREES CELSIUS"
DESCRIPTION = "Case temperature in Celsius."
END_OBJECT = COLUMN
OBJECT = COLUMN
NAME = HV_LEVEL_CTN
COLUMN_NUMBER = 9
BYTES = 1
DATA_TYPE = MSB_UNSIGNED_INTEGER
START_BYTE = 52
DESCRIPTION = "The CTN HV level 0 = off, 2 = high, 3 = low"
END_OBJECT = COLUMN
OBJECT = COLUMN
NAME = HV_LEVEL_CETN
COLUMN_NUMBER = 10
BYTES = 1
DATA_TYPE = MSB_UNSIGNED_INTEGER
START_BYTE = 53
DESCRIPTION = "The CETN HV level 0 = off, 2 = high, 3 = low"
END_OBJECT = COLUMN
OBJECT = COLUMN
NAME = DSC_LEVEL_CTN
COLUMN_NUMBER = 11
BYTES = 1
DATA_TYPE = MSB_UNSIGNED_INTEGER
START_BYTE = 54
DESCRIPTION = "The CTN Discriminator level 0 = low, 1 = high."
END_OBJECT = COLUMN
OBJECT = COLUMN
NAME = DSC_LEVEL_CETN
COLUMN_NUMBER = 12
BYTES = 1
DATA_TYPE = MSB_UNSIGNED_INTEGER
START_BYTE = 55
DESCRIPTION = "The CETN Discriminator level 0 = low, 1 = high."
END_OBJECT = COLUMN
OBJECT = COLUMN
NAME = LST
COLUMN_NUMBER = 13
BYTES = 8
DATA_TYPE = CHARACTER
START_BYTE = 56
DESCRIPTION = "Local solar time at start of period, 'hh:mm:ss'."
PDS_VERSION_ID = PDS3
/* FILE DATA ELEMENTS */
RECORD_TYPE = FIXED_LENGTH
RECORD_BYTES = 8671
FILE_RECORDS = 21
/* IDENTIFICATION DATA ELEMENTS */
DATA_SET_ID = "MSL-M-DAN-3/4-RDR-V1.0"
COMMAND_SEQUENCE_NUMBER = 0
INSTRUMENT_HOST_ID = MSL
INSTRUMENT_HOST_NAME = "MARS SCIENCE LABORATORY"
INSTRUMENT_NAME = "DYNAMIC ALBEDO OF NEUTRONS"
MSL:REQUEST_ID = 324
PLANET_DAY_NUMBER = "42"
PRODUCT_CREATION_TIME = 2010-10-27T22:19:47.000
PRODUCT_ID = "DNA_351797691RPA_0550000000_______P1.DAT"
PRODUCT_TYPE = DAN_RDR_PA
PRODUCT_VERSION_ID = "1.0"
RELEASE_ID = "1"
ROVER_MOTION_COUNTER = (0,0,0,0,0,0,0,0)
ROVER_MOTION_COUNTER_NAME = (SITE, DRIVE, POSE, ARM, CHIMRA,
DRILL, RSM, HGA)
SEQUENCE_ID = "1036288"
SEQUENCE_VERSION_ID = "0"
SPACECRAFT_CLOCK_START_COUNT = "340477575.18840"
SPACECRAFT_CLOCK_STOP_COUNT = "340492323.21101"
START_TIME = 2012-289T05:10:16.868
STOP_TIME = 2012-289T06:05:11:21.545
TARGET_NAME = MARS
^TABLE = "DNA_351797691RPA_0550000000_______P1.DAT"
OBJECT = TABLE
COLUMNS = 1212
INTERCHANGE_FORMAT = BINARY
ROW_BYTES = 8671
ROWS = 21
DESCRIPTION = "
This table contains converted neutron count data
as observed by the Mars Science Laboratory (MSL) Dynamic Albedo of
Neutron Detector (DAN).
Detailed descriptions for the parameters defined below are
contained in the DAN RDR SIS document.
The complete column definitions are contained in an external file
found in the LABEL directory of the archive volume.
"
^STRUCTURE = "DAN_RDR_DERIVED_PASSIV.FMT"
END_OBJECT = TABLE
END
6.2.1 Derived Passive FORMAT FILE
OBJECT = COLUMN
COLUMN_NUMBER = 1
NAME = DAN_TIME
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 4
START_BYTE = 1
DESCRIPTION = "DAN instrument time in milliseconds since last
power up."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 2
NAME = UTC_TIMESTAMP
DATA_TYPE = CHARACTER
BYTES = 23
START_BYTE = 5
DESCRIPTION = "UTC time at the start of the collection interval,
stored as yyyy-mm-ddThh:mm:ss.sss."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 3
NAME = BEGIN_LATITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 28
UNIT = DEGREE
DESCRIPTION = "Latitude in Mars fixed coordinates at the beginning
of the frame, in degrees."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 4
NAME = BEGIN_LONGITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 32
UNIT = DEGREE
DESCRIPTION = "Easting Longitude in Mars fixed coordinates at the beginning
of the frame, in degrees."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 5
NAME = END_LATITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 36
UNIT = DEGREE
DESCRIPTION = "Latitude in Mars fixed coordinates at the end
of the frame, in degrees."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 6
NAME = END_LONGITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 40
UNIT = DEGREE
DESCRIPTION = "Easting Longitude in Mars fixed coordinates at the end
of the frame, in degrees."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 7
NAME = COLLECTION_DURATION
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 44
UNIT = SECOND
DESCRIPTION = "Value of collection time register, length of time
in seconds."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 8
NAME = CTN_BKGD
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 48
UNIT = COUNT
DESCRIPTION = "Background counts for CTN detector (counts)."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 9
NAME = CTN_COUNTS
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 52
UNIT = COUNT
DESCRIPTION = "Sum of Counts gathered in CTN detector during frame
interval."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 10
NAME = CETN_BKGD
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 56
UNIT = COUNT
DESCRIPTION = "Background counts for CETN detector (counts)."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 11
NAME = CETN_COUNTS
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 60
UNIT = COUNT
DESCRIPTION = "Sum of Counts gathered in CETN detector during frame
interval."
END_OBJECT = COLUMN
OBJECT = COLUMN
NAME = LST
COLUMN_NUMBER = 12
BYTES = 8
DATA_TYPE = CHARACTER
START_BYTE = 64
DESCRIPTION = "Local solar time at start of period, 'hh:mm:ss'."
END_OBJECT = COLUMN
PDS_VERSION_ID = PDS3
/* FILE DATA ELEMENTS */
RECORD_TYPE = FIXED_LENGTH
RECORD_BYTES = 13551336
FILE_RECORDS = 21
/* IDENTIFICATION DATA ELEMENTS */
DATA_SET_ID = "MSL-M-DAN-3/4-RDR-V1.0"
COMMAND_SEQUENCE_NUMBER = 0
INSTRUMENT_HOST_ID = MSL
INSTRUMENT_HOST_NAME = "MARS SCIENCE LABORATORY"
INSTRUMENT_NAME = "DYNAMIC ALBEDO OF NEUTRONS"
MSL:REQUEST_ID = 5213
PLANET_DAY_NUMBER = "42"
PRODUCT_CREATION_TIME = 2010-10-27T22:19:47.000
PRODUCT_ID = "DNA_351797691RAC_0550000000_______P1.DAT"
PRODUCT_TYPE = DAN_RDR_AC
PRODUCT_VERSION_ID = "1.0"
RELEASE_ID = "1"
ROVER_MOTION_COUNTER = (0,0,0,0,0,0,0,0)
ROVER_MOTION_COUNTER_NAME = (SITE, DRIVE, POSE, ARM, CHIMRA,
DRILL, RSM, HGA)
SEQUENCE_ID = "1036288"
SEQUENCE_VERSION_ID = "0"
SPACECRAFT_CLOCK_START_COUNT = "340477575.18840"
SPACECRAFT_CLOCK_STOP_COUNT = "340479563.22311"
START_TIME = 2012-289T05:10:16.868
STOP_TIME = 2012-289T05:21:11.454
TARGET_NAME = MARS
^TABLE = "DNA_351797691RAC_0550000000_______P1.DAT"
OBJECT = TABLE
COLUMNS = 1514
INTERCHANGE_FORMAT = BINARY
ROW_BYTES = 13551336
ROWS = 21
DESCRIPTION = "
This table contains converted neutron count data during neutron pulsing
as observed by the Mars Science Laboratory (MSL) Dynamic Albedo of
Neutron Detector (DAN).
Detailed descriptions for the parameters defined below are
contained in the DAN RDR SIS document.
The complete column definitions are contained in an external file
found in the LABEL directory of the archive volume.
"
^STRUCTURE = "DAN_RDR_DERIVED_ACTIV.FMT"
END_OBJECT = TABLE
END
6.3.1 Derived Active FORMAT FILE
OBJECT = COLUMN
COLUMN_NUMBER = 1
NAME = DAN_TIME
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 4
START_BYTE = 1
UNIT = MILLISECONDS
DESCRIPTION = "DAN time at beginning of interval."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 2
NAME = UTC_TIMESTAMP
DATA_TYPE = CHARACTER
BYTES = 23
START_BYTE = 5
DESCRIPTION = "UTC time at the start of the collection interval,
stored as yyyy-mm-ddThh:mm:ss.sss."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 3
NAME = LATITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 28
UNIT = DEGREE
DESCRIPTION = "Latitude in Mars fixed coordinates."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 4
NAME = LONGITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 32
UNIT = DEGREE
DESCRIPTION = "Easting Longitude in Mars fixed coordinates."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 5
NAME = COLLECTION_DURATION
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 4
START_BYTE = 36
UNIT = SECOND
DESCRIPTION = "Value of collection time register, length of time
in seconds."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 6
NAME = NUM_PNG_PULSES
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 4
START_BYTE = 40
UNIT = COUNT
DESCRIPTION = "number of PNG pulses during data collection interval."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 7
NAME = PNG_FREQUENCY
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 1
START_BYTE = 44
UNIT = COUNT
DESCRIPTION = "Pulsing Neutron Generator frequency of pulsing."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 8
NAME = TIME_BIN_DURATION
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 4
START_BYTE = 45
UNIT = MICROSECOND
DESCRIPTION = "duration in microseconds for each time bin."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 9
NAME = TIME_BIN_START
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 256
START_BYTE = 49
ITEMS = 64
ITEM_BYTES = 4
UNIT = MICROSECOND
DESCRIPTION = "start time in microseconds for each time bin."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 10
NAME = CTN_BKGD
DATA_TYPE = IEEE_REAL
BYTES = 256
START_BYTE = 305
ITEMS = 64
ITEM_BYTES = 4
UNIT = COUNTS
DESCRIPTION = "Background counts for each of 64 CTN detector spectra
(counts)."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 11
NAME = CTN_COUNTS
DATA_TYPE = IEEE_REAL
BYTES = 256
START_BYTE = 561
ITEMS = 64
ITEM_BYTES = 4
UNIT = COUNTS
DESCRIPTION = "Counts gathered in CTN detector for each of the 64
spectra during frame interval."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 12
NAME = CETN_BKGD
DATA_TYPE = IEEE_REAL
BYTES = 256
ITEMS = 64
ITEM_BYTES = 4
START_BYTE = 817
UNIT = COUNTS
DESCRIPTION = "Background counts for each of the 64 CETN detector
(counts)."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 13
NAME = CETN_COUNTS
DATA_TYPE = IEEE_REAL
BYTES = 256
ITEMS = 64
ITEM_BYTES = 4
START_BYTE = 1073
UNIT = COUNTS
DESCRIPTION = "Counts gathered in CETN detector for each of the 64
specta during frame interval."
END_OBJECT = COLUMN
OBJECT = COLUMN
NAME = LST
COLUMN_NUMBER = 14
BYTES = 8
DATA_TYPE = CHARACTER
START_BYTE = 1329
DESCRIPTION = "Local solar time at the start of interval, 'hh:mm:ss'."
END_OBJECT = COLUMN
PDS_VERSION_ID = PDS3
/* FILE DATA ELEMENTS */
RECORD_TYPE = FIXED_LENGTH
RECORD_BYTES = 106122
FILE_RECORDS = 21
/* IDENTIFICATION DATA ELEMENTS */
DATA_SET_ID = "MSL-M-DAN-3/4-RDR-V1.0"
COMMAND_SEQUENCE_NUMBER = 0
INSTRUMENT_HOST_ID = MSL
INSTRUMENT_HOST_NAME = "MARS SCIENCE LABORATORY"
INSTRUMENT_NAME = "DYNAMIC ALBEDO OF NEUTRONS"
MSL:REQUEST_ID = 2131
PLANET_DAY_NUMBER = "42"
PRODUCT_CREATION_TIME = 2010-10-27T22:19:47.000
PRODUCT_ID = "DNA_351797691RAP_0550000000_______P1.DAT"
PRODUCT_TYPE = DAN_RDR_AP
PRODUCT_VERSION_ID = "1.0"
RELEASE_ID = "1"
ROVER_MOTION_COUNTER = (0,0,0,0,0,0,0,0)
ROVER_MOTION_COUNTER_NAME = (SITE, DRIVE, POSE, ARM, CHIMRA,
DRILL, RSM, HGA)
SEQUENCE_ID = "1036288"
SEQUENCE_VERSION_ID = "0"
SPACECRAFT_CLOCK_START_COUNT = "340477575.18840"
SPACECRAFT_CLOCK_STOP_COUNT = "340470323.23321"
START_TIME = 2010-289T05:10:16.868"
STOP_TIME = 2012-289T05:12:17.121
TARGET_NAME = MARS
^TABLE = "DNA_351797691RAP_0550000000_______P1.DAT"
OBJECT = TABLE
COLUMNS = 1719
INTERCHANGE_FORMAT = BINARY
ROW_BYTES = 106122
ROWS = 21
DESCRIPTION = "
This table contains converted neutron averaged counts data during
neutron passive operations as observed by the Mars Science
Laboratory (MSL) Dynamic Albedo of Neutron Detector (DAN).
Detailed descriptions for the parameters defined below are
contained in the DAN RDR SIS document.
The complete column definitions are contained in an external file
found in the LABEL directory of the archive volume.
"
^STRUCTURE = "DAN_RDR_AVERAGE_PASSIV.FMT"
END_OBJECT = TABLE
END
5.3.1 Averaged Passive FORMAT FILE
OBJECT = COLUMN
COLUMN_NUMBER = 1
NAME = START_DAN_TIME
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 4
START_BYTE = 1
UNIT = MILLISECONDS
DESCRIPTION = "DAN time at beginning of average interval."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 2
NAME = END_DAN_TIME
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 4
START_BYTE = 5
UNIT = MILLISECONDS
DESCRIPTION = "DAN time at end of average interval."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 3
NAME = START_UTC
DATA_TYPE = CHARACTER
BYTES = 23
START_BYTE = 9
DESCRIPTION = "UTC time at the start of the collection interval,
stored as yyyy-mm-ddThh:mm:ss.sss."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 4
NAME = END_UTC
DATA_TYPE = CHARACTER
BYTES = 23
START_BYTE = 32
DESCRIPTION = "UTC time at the end of the collection interval,
stored as yyyy-mm-ddThh:mm:ss.sss."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 5
NAME = BEGIN_LATITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 55
UNIT = DEGREE
DESCRIPTION = "Latitude in Mars fixed coordinates at the beginning
of the frame, in degrees."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 6
NAME = BEGIN_LONGITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 59
UNIT = DEGREE
DESCRIPTION = "Easting Longitude in Mars fixed coordinates at the beginning
of the frame, in degrees."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 7
NAME = END_LATITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 63
UNIT = DEGREE
DESCRIPTION = "Latitude in Mars fixed coordinates at the end
of the frame, in degrees."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 8
NAME = END_LONGITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 67
UNIT = DEGREE
DESCRIPTION = "Easting Longitude in Mars fixed coordinates at the end
of the frame, in degrees."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 9
NAME = COLLECTION_DURATION
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 4
START_BYTE = 71
UNIT = SECOND
DESCRIPTION = "Value of collection time register, length of time
in seconds."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 10
NAME = CTN_AVERAGE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 75
UNIT = COUNT
DESCRIPTION = "Average Counts in CTN detector over duration."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 11
NAME = CTN_BKGD
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 79
UNIT = COUNT
DESCRIPTION = "Background counts for CTN detector (counts)."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 12
NAME = CTN_ERROR
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 83
UNIT = COUNT
DESCRIPTION = "Error in CTN detector over duration."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 13
NAME = CTN_NORM
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 87
UNIT = COUNT
DESCRIPTION = "Normalization for CTN detector over duration."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 14
NAME = CETN_AVERAGE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 91
UNIT = COUNT
DESCRIPTION = "Average counts for CETN detector over duration."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 15
NAME = CETN_BKGD
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 95
UNIT = COUNT
DESCRIPTION = "Background counts for CETN detector (counts)."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 16
NAME = CETN_ERROR
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 99
UNIT = COUNT
DESCRIPTION = "Error in CETN detector over duration."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 17
NAME = CETN_NORM
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 103
UNIT = COUNT
DESCRIPTION = "Normalization for CETN detector for duration."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 18
NAME = START_LST
DATA_TYPE = CHARACTER
BYTES = 8
START_BYTE = 107
DESCRIPTION = "Local solar time at start of period, 'hh:mm:ss'."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 19
NAME = END_LST
DATA_TYPE = CHARACTER
BYTES = 8
START_BYTE = 115
DESCRIPTION = "Local solar time at end of period, 'hh:mm:ss'."
END_OBJECT = COLUMN
PDS_VERSION_ID = PDS3
/* FILE DATA ELEMENTS */
RECORD_TYPE = FIXED_LENGTH
RECORD_BYTES = 119135
FILE_RECORDS = 21
/* IDENTIFICATION DATA ELEMENTS */
DATA_SET_ID = "MSL-M-DAN-3/4-RDR-V1.0"
COMMAND_SEQUENCE_NUMBER = 0
INSTRUMENT_HOST_ID = MSL
INSTRUMENT_HOST_NAME = "MARS SCIENCE LABORATORY"
INSTRUMENT_NAME = "DYNAMIC ALBEDO OF NEUTRONS"
MSL:REQUEST_ID = 3321
PLANET_DAY_NUMBER = "42"
PRODUCT_CREATION_TIME = 2010-10-27T22:19:47.000
PRODUCT_ID = "DNA_351797691RAA_0550000000_______P1.DAT"
PRODUCT_TYPE = DAN_RDR_AA
PRODUCT_VERSION_ID = "1.0"
RELEASE_ID = "1"
ROVER_MOTION_COUNTER = (0,0,0,0,0,0,0,0)
ROVER_MOTION_COUNTER_NAME = (SITE, DRIVE, POSE, ARM, CHIMRA,
SEQUENCE_ID = "1036288"
SEQUENCE_VERSION_ID = "0"
SPACECRAFT_CLOCK_START_COUNT = "340477575.18840"
SPACECRAFT_CLOCK_STOP_COUNT = "340481123.22311"
START_TIME = 2012-289T05:10:16.868
STOP_TIME = 2012-289T05:12:22:213
TARGET_NAME = MARS
^TABLE = "DNA_351797691RAA_0550000000_______P1.DAT"
OBJECT = TABLE
COLUMNS = 2123
INTERCHANGE_FORMAT = BINARY
ROW_BYTES = 119135
ROWS = 21
DESCRIPTION = "
This table contains converted neutron count data during neutron pulsing
as observed by the Mars Science Laboratory (MSL) Dynamic Albedo of
Neutron Detector (DAN).
Detailed descriptions for the parameters defined below are
contained in the DAN RDR SIS document.
The complete column definitions are contained in an external file
found in the LABEL directory of the archive volume.
"
^STRUCTURE = "DAN_RDR_AVERAGE_ACTIV.FMT"
END_OBJECT = TABLE
END
5.3.1 Averaged Active FORMAT FILE
OBJECT = COLUMN
COLUMN_NUMBER = 1
NAME = START_DAN_TIME
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 4
START_BYTE = 1
UNIT = MILLISECONDS
DESCRIPTION = "DAN time at beginning of average."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 2
NAME = END_DAN_TIME
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 4
START_BYTE = 5
UNIT = MILLISECONDS
DESCRIPTION = "DAN time at end of averaging interval."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 3
NAME = START_UTC
DATA_TYPE = CHARACTER
BYTES = 23
START_BYTE = 9
DESCRIPTION = "UTC time at the start of the averaging interval,
stored as yyyy-mm-ddThh:mm:ss.sss."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 4
NAME = END_UTC
DATA_TYPE = CHARACTER
BYTES = 23
START_BYTE = 32
DESCRIPTION = "UTC time at the end of the averaging interval,
stored as yyyy-mm-ddThh:mm:ss.sss."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 5
NAME = BEGIN_LATITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 55
UNIT = DEGREE
DESCRIPTION = "Latitude in Mars fixed coordinates at the beginning
of the frame, in degrees."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 6
NAME = BEGIN_LONGITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 59
UNIT = DEGREE
DESCRIPTION = "Easting Longitude in Mars fixed coordinates at the beginning
of the frame, in degrees."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 7
NAME = END_LATITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 63
UNIT = DEGREE
DESCRIPTION = "Latitude in Mars fixed coordinates at the end
of the frame, in degrees."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 8
NAME = END_LONGITUDE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 67
UNIT = DEGREE
DESCRIPTION = "Easting Longitude in Mars fixed coordinates at the end
of the frame, in degrees."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 9
NAME = COLLECTION_DURATION
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 4
START_BYTE = 71
UNIT = SECOND
DESCRIPTION = "Value of collection time register, length of time
in seconds."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 10
NAME = NUM_PNG_PULSES
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 4
START_BYTE = 75
UNIT = COUNT
DESCRIPTION = "number of PNG pulses during data collection interval."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 11
NAME = PNG_FREQUENCY
DATA_TYPE = MSB_UNSIGNED_INTEGER
BYTES = 1
START_BYTE = 79
UNIT = COUNT
DESCRIPTION = "Pulsing Neutron Generator frequency of pulsing."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 12
NAME = TIME_BIN_DURATION
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 80
UNIT = MICROSECONDS
DESCRIPTION = "duration in microseconds for each time bin."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 13
NAME = TIME_BIN_START
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 84
UNIT = MICROSECONDS
DESCRIPTION = "start time after the pulse in microseconds for
each time bin."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 14
NAME = CTN_AVERAGE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 88
UNIT = COUNT
DESCRIPTION = "Average Counts in CTN detector over duration."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 15
NAME = CTN_BKGD
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 92
UNIT = COUNT
DESCRIPTION = "Background counts for CTN detector (counts)."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 16
NAME = CTN_ERROR
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 96
UNIT = COUNT
DESCRIPTION = "Average Error in CTN detector over interval."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 17
NAME = CTN_NORM
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 100
UNIT = COUNT
DESCRIPTION = "Normalization for CTN detector over duration."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 18
NAME = CETN_AVERAGE
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 104
UNIT = COUNT
DESCRIPTION = "Average counts for CETN detector over duration."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 19
NAME = CETN_BKGD
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 108
UNIT = COUNT
DESCRIPTION = "Background counts for CETN detector (counts)."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 20
NAME = CETN_ERROR
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 112
UNIT = COUNT
DESCRIPTION = "Error in CETN detector over duration."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 21
NAME = CETN_NORM
DATA_TYPE = IEEE_REAL
BYTES = 4
START_BYTE = 116
UNIT = COUNT
DESCRIPTION = "Normalization for CETN detector for duration."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 22
NAME = START_LST
DATA_TYPE = CHARACTER
BYTES = 8
START_BYTE = 120
DESCRIPTION = "Local solar time at start of period, 'hh:mm:ss'."
END_OBJECT = COLUMN
OBJECT = COLUMN
COLUMN_NUMBER = 23
NAME = END_LST
DATA_TYPE = CHARACTER
BYTES = 8
START_BYTE = 128
DESCRIPTION = "Local solar time at end of period, 'hh:mm:ss'."
END_OBJECT = COLUMN
Keyword Name |
Definition |
Type |
PDS_VERSION_ID |
Specifies the version number of the PDS standards document that is valid when a data product label is created. Values for the PDS_version_id are formed by appending the integer for the latest version number to the letters 'PDS'. |
String |
|
|
|
/* FILE DATA ELEMENTS */ |
Comment |
|
|
|
|
RECORD_TYPE |
Specifies the record format of a file, such as FIXED_LENGTH.
Note: In the PDS, when RECORD_TYPE is used in a detached label file, it always describes its corresponding detached data file and not the label file itself. The use of RECORD_TYPE along with other file-related data elements is fully described in the PDS Standards Reference. |
String |
RECORD_BYTES |
Specifies the number of bytes in a physical file record, including record terminators and separators.
Note: In the PDS, the use of record_bytes, along with other file-related data elements is fully described in the Standards Reference. |
integer |
FILE_RECORDS |
Specifies the number of physical file records, including both label records and data records. Note: In the PDS the use of FILE_RECORDS along with other file-related data elements is fully described in the Standards Reference. |
integer |
|
|
|
/* IDENTIFICATION DATA ELEMENTS */ |
Comment |
|
|
|
|
DATA_SET_ID |
A unique alphanumeric identifier for a data set or a data product. The DATA_SET_ID value for a given data set or product is constructed according to flight project naming conventions. In most cases the DATA_SET_ID is an abbreviation of the DATA_SET_NAME.
Note: In the PDS, the values for both DATA_SET_ID and DATA_SET_NAME are constructed according to standards outlined in the Standards Reference. |
string(40) |
COMMAND_SEQUENCE_NUMBER |
Specifies a numeric identifier for a sequence of commands sent to a spacecraft or instrument.
Note: For MSL, this is the command number that identifies the specific generating command within the specified sequence. |
String |
INSTRUMENT_HOST_ID |
Specifies a unique identifier for the host where an instrument is located. This host can be either a spacecraft or an earth base (e.g., and observatory or laboratory on the earth). Thus, INSTRUMENT_HOST_ID can contain values, which are either SPACECRAFT_ID values or EARTH_BASE_ID values. |
String |
INSTRUMENT_HOST_NAME |
The full name of the host on which this instrument is based |
String |
INSTRUMENT_NAME |
Name of the instrument, free format, enclosed in double quotes. See example labels for various names used for MECA non-imaging products |
String |
INTERCHANGE_FORMAT |
Set to BINARY for DAN RDRs |
String |
PLANET_DAY |
Mars Sol starting from Sol 0 at Landing |
Integer |
PRODUCT_CREATION_TIME |
Defines the UTC system format time when a product was created. |
String |
PRODUCT_ID |
Represents a permanent, unique identifier assigned to a data product by its producer. See also: source_product_id.
Note: In the PDS, the value assigned to product_id must be unique within its data set.
Additional note: The product_id can describe the lowest-level data object that has a PDS label. |
String(40) |
PRODUCT_TYPE |
Either EDR or RDR |
String |
MSL:REQUEST_ID |
Specifies the Request ID value associated with the Data Product generation command. Unsigned integer. |
|
ROVER_MOTION_COUNTER |
Specifies a set of integers which describe a (potentially) unique location (position/orientation) for a rover. Each time something happens that moves, or could potentially move, the rover, a new motion counter value is created. This includes intentional motion due to drive commands, as well as potential motion due to other articulating devices, such as arms or antennae. This motion counter (or part of it) is used as a reference to define instances of coordinate systems which can move such as SITE or ROVER frames. The motion counter is defined in a mission-specific manner. Although the original intent was to have incrementing indices (e.g. MER), the motion counter could also contain any integer values which conform to the above definition, such as time or spacecraft clock values.
For MSL, the motion counter consists of eight values. In order, they are Site, Drive, Pose, Arm, Chimra, Drill, RSM and HGA. The Site value increments whenever a new major Site frame is declared. The Drive value increments any time intentional driving is done. Each of those resets all later indices to 0 when they increment. |
|
ROVER_MOTION_COUNTER_NAME |
Specifies an array that provides the formal names identifiying each integer in ROVER_MOTION_COUNTER. |
|
SEQUENCE_ID |
Specifies an identification of the spacecraft sequence associated with the given product. This element replaces the older seq_id, which should no longer be used. |
|
SEQUENCE_VERSION_ID |
Specifies the version identifier for a particular observation sequence used during planning or data processing. |
|
SPACECRAFT_CLOCK_START |
Starting SCLK, smallest, value of all the records contained in the EDR. |
string(30) |
START_TIME |
SPACECRAFT_CLOCK_START_COUNT converted and represented in UTC |
string |
STOP_TIME |
SPACECRAFT_CLOCK_STOP converted and represented in UTC |
string |
TARGET_NAME |
Identifies a target. The target may be a planet, satellite, ring, region, feature, asteroid or comet. See TARGET_TYPE. This is based on mission phase. |
string(30) |
^TABLE |
The name of the data file |
string |
COLUMNS |
The number of columns in the data file |
Integer |
ROW_BYTES |
The number of bytes per row in the data file |
Integer |
ROWS |
The number of rows in the data file |
Integer |
^STRUCTURE |
A pointer to the Format file the contains information about each column in the data file |
String |
