PDS Data Product Software Interface Specification (SIS)

For

Mini-RF Advanced Technologies – Forerunner (Mini-SAR) Payload Operations Center

December January 19, 2011

Prepared by
Mini-RF Program

Prepared by

Mr. Michael Reid                                                                Date

Mini-RF POC Data Archivist

JHU/APL

Reviewed by

Dr. D. Ben Bussey                                                                Date

Mini-RF Science Team Liaison & Co-Investigator

JHU/APL

Mr. David LaVallee                                                             Date

POC Manager

JHU/APL

Approved by

Dr. Paul Spudis                                                                   Date

Forerunner Principal Investigator

Lunar and Planetary Institute

Ms. Helene Winters                                                              Date

Project Manager

JHU/APL

Ms. Susan Slavney                                                              Date

NASA PDS Representative, Geosciences Node

Washington University, St. Louis

Table of Contents

1.    Purpose and Scope of Document                                                                                         1

2.    Applicable Documents                                                                                                       2

3.    Relationships with other Interfaces                                                                                     2

4.    Data Product Characteristics and Environment                                                                    2

4.1    Instrument Overview                                                                                                      2

4.1.1    Instrument Description                                                                                             3

4.2    Data Processing                                                                                                            4

4.2.1    Data Processing Levels                                                                                             4

4.2.2    Calibration                                                                                                             5

4.2.2.1    Amplitude calibration                                                                                        5

4.2.2.2    Phase calibration                                                                                              6

4.2.3    SAR Science Data Processing                                                                                    6

4.2.3.1    Level-0 Processing                                                                                            7

4.2.3.2    Level-1 SAR Processing                                                                                    7

4.2.3.3    Level-2 SAR Processing                                                                                    9

4.2.4    Scatterometry Science Data Processing                                                                        9

4.3    Archived Data Products                                                                                                  9

4.3.1    Raw Data                                                                                                               9

4.3.2    SAR Mode Products                                                                                              12

4.3.2.1    Level-1                                                                                                         12

4.3.2.2    Level-2                                                                                                         13

4.3.3    Level-3 Polar Mosaics                                                                                            17

4.3.4    Ancillary Data Products                                                                                          18

4.3.4.1    Instrument Housekeeping Data                                                                          18

4.3.5    Calibration Data Products                                                                                       18

4.3.6    SPICE Kernels                                                                                                      19

4.3.7    PDS Archive Files                                                                                                 22

4.4    Data Product Archiving                                                                                                24

4.4.1    Data Flow                                                                                                            24

4.4.2    Labeling and Identification                                                                                      25

4.5    Standards Used in Generating Data Products                                                                   25

4.5.1    PDS Standards                                                                                                      25

4.5.2    Time Standards                                                                                                     26

4.5.3    Computational Assumptions                                                                                   26

4.5.4    Archiving Standard                                                                                                27

4.5.5    Data Storage Conventions                                                                                       27

4.6    Data Validation                                                                                                          27

4.7    Data Product Structure and Organization                                                                        27

4.7.1    File Naming                                                                                                         27

4.7.1.1    File Naming Conventions for the Orbit-Based Science Data Products                       28

4.7.1.2    File Naming Convention for Calibration Files                                                      31

4.7.1.3    File Naming Conventions for SPICE Kernels                                                       32

4.8    Label and Header Descriptions                                                                                      33

4.8.1    PDS Label Parameter Descriptions                                                                            33

4.8.2    Examples of SAR Product PDS Labels                                                                      38

4.8.2.1    Example PDS Minimal Label for a FORERUNNER Raw PDR Data Product            38

4.8.2.2    Example PDS label for a FORERUNNER Level-1 SAR Data Product                      39

4.8.2.3    Example PDS label for a FORERUNNER Level-2 SAR CDR Data Product              41

4.8.2.4    Example PDS Daughter Product Label                                                                43

4.8.2.5    Example PDS label for a FORERUNNER Level-3 SAR Data Product                      45

5.    Applicable Software                                                                                                         47

5.1    Software Distribution And Update Procedures                                                                  47

6.    Appendices                                                                                                                     48

6.1    Glossary                                                                                                                    48

6.2    Acronyms                                                                                                                   48

1.    Purpose and Scope of Document

This Software Interface Specification (SIS) describes the archived Forerunner (also known as “Mini-SAR”) instrument science-related data products. Forerunner is an instrument that flew on the Indian Space Research Organisation (ISRO) Chandrayaan-1 lunar orbiting spacecraft. It is a synthetic aperture radar (SAR) that imaged and characterized the lunar surface. The Mini-RF Payload Operations Center (POC) is located at The Johns Hopkins University Applied Physics Laboratory (APL) in Laurel, Maryland. The POC supports both this instrument and the similar Mini-RF instrument on the NASA Lunar Reconnaissance Orbiter (LRO) spacecraft. It hosts processing systems, which will generate levels of science data products from the raw telemetry received from the instrument. The raw SAR data are processed within the POC through level-2 using Microsoft^®/Vexcel^®’s SAR Processor. This document specifies the format and content of those products and is intended to serve as a guide for producing and using them.

Figure 1: The Chandrayaan-1 spacecraft.

This document is intended for scientists and engineers in the planetary science community and others who wish to understand the format and content of the Forerunner science data products. The SIS applies to the Forerunner data products produced during the course of Chandrayaan-1 Mission operations.

2.    Applicable Documents

The Forerunner SIS references or is applicable to the following documents:

1        Planetary Data System Standards Reference, NASA/JPL, February 27, 2009, Version 3.8. JPL D-7669, Part-2. Available from http://pds.jpl.nasa.gov/documents/sr/index.html. [Accessed: January 26, 2010].

2        Planetary Data System Archive Preparation Guide, August 29, 2006, Version 1.1, JPL D-31224, NASA/JPL. Available from http://pds.jpl.nasa.gov/documents/apg/index.html. [Accessed: May 8, 2007].

3        Chandrayaan-1 Project Mini-SAR Instrument Team Data Management and Archive Plan, Mini-RF program.

4        Chandrayaan-1 Mini-RF Science Team and PDS Geosciences Node Interface Control Document (ICD), Mini-RF program.

5        Lunar Reconnaissance Orbiter (LRO) Mini-RF Science Team and PDS Geosciences Node Interface Control Document (ICD), Mini-RF program.

6        Data Interface Control Document for Mini-RF Advanced Technologies (Forerunner) (XMRF-1101), Mini-RF program.

7        Archive Volume Software Interface Specification (SIS) for Mini-RF Advanced Technologies—Forerunner (Mini-SAR) (MRF-4010), Mini-RF program.

8        P. L. McKerracher, J. R. Jensen, H. B. Sequeira, R. K. Raney, R. C. Schulze, D. B. J. Bussey, B. J. Butler, C. D. Neish, M. Palsetia, G. W. Patterson, P. D. Spudis, B. J. Thomson, F. S. Turner, Mini-RF calibration, a unique approach to on-orbit synthetic aperture radar system calibration, 2010 [DOCUMENT/MRF_CAL/MRF_CAL_MCKERRACHER_ET_AL2010].

9        J. R. Jensen, Forerunner transmit polarization ellipse as observed at Green Bank Radio Telescope on February 28 and March 1, 2009 [DOCUMENT/GB_CAL/MRFFR_GB_CALIB_JENSEN2009].

3.    Relationships with other Interfaces

The Forerunner data products are produced at the POC and are delivered to the PDS. The products are decompressed radar image files, calibration data, miscellaneous ancillary data, and SPICE kernels. Their formats comply with PDS standards. All products will be archived to the PDS Geosciences node.

4.    Data Product Characteristics and Environment

4.1    Instrument Overview

Forerunner (Mini-SAR) is an instrument on the Chandrayaan-1 spacecraft. It is capable of active SAR and scatterometer imaging. High-resolution SAR images of the lunar polar regions will be obtained. The search for water ice, particularly in the polar regions of the Moon is its primary science mission, but it will also characterize the surface roughness and thickness of the regolith. The instrument will gather data during dedicated observing opportunities. The original operations plan had six approximately 30-day opportunities during the two-year primary mission.

4.1.1    Instrument Description

The Forerunner instrument has the following orbital, operational, and electrical attributes that describe it.

Table 1 Description of the Forerunner instrument.

4.2    Data Processing

There are two modes of data acquisition from the Forerunner instrument on the Chandrayaan-1 spacecraft, SAR and scatterometry mode. SAR mode is referred to in this document as the standard SAR product. Scatterometry mode (also a type of SAR product) is used to create the scatterometry products. Processed numeric data products are provided in little-endian format.

4.2.1    Data Processing Levels

There are four levels of SAR data products archived at the PDS: raw, level 1, level 2, and level 3 (mosaics). There is a level-0 processing performed at the POC; however, these are intermediate products that are not scientifically useful and therefore, are not archived at the PDS. Additionally, there are ground calibration and ancillary products. All are generated at the POC. Each product will have a unique file name and follow the file naming convention (see File Naming section 4.7.1). Each product file will be associated with a particular data set (see Table 3). Only one set of raw scatterometry data are archived at the POC. This data set is useful only for calibration purposes. The processing levels given in the DATA_SET_IDs are CODMAC levels. All other references to processing levels in this document are NASA processing levels.

Table 2 The standard NASA and CODMAC processing levels for science data sets. These are used in defining the data set IDs.

Table 3 The archived science data products, their PDS data set IDs and corresponding processing levels. See the description of CODMAC levels in Table 2.

Table 4 Values of mission and instrument identifying key words. Note that the instrument is also known as “Miniature Synthetic Aperture Radar (Mini-SAR).”

4.2.2    Calibration

McKerracher et al (2010) [See sec. 2, ref. 8] and Jensen (2010) [See sec. 2, Ref. 9] describe instrument and data calibration that are applied to the CDRs in documents included in the DOCUMENT directory of the PDS archive. The raw calibration data products are available in the CALIB directory in the accompanying archive. See CALIB/CALINFO.TXT for a listing and discussion of these product files.

4.2.2.1    Amplitude calibration

The Mini-RF radar data product is comprised of the amplitude (or magnitude squared) of the H and the V channels of the dual-polarized receiver, and also the cross-product of the complex H and V amplitudes. These data are necessary and sufficient to form the 2×2 coherency matrix of the backscattered field, which is alternatively represented by the Stokes parameters, four real numbers. The first Stokes parameter represents the total backscattered power. This can be scaled to the normalized reflectivity sigma-zero only if the end-to-end transformation of the radar is calibrated absolutely. The starting point for this scaling is the set of pre-flight system data, coupled with in-flight specifics such as incidence and altitude. During the mission, absolute calibration will be updated by imaging a lunar area whose reflectivity is well known from Earth-based radar observatories; however, most lunar science measurements depend on ratios of the Stokes parameters, for which absolute amplitude calibration is not required. Rather, gain balance between the H and the V channels is the key objective. Relative calibration consists of evaluating the corrective scaling constant of the H amplitude relative to the V amplitude. Calibration references (noise, tone, and chirp) are included at the beginning and end of each data take to assist relative amplitude calibration. During the mission, relative calibration will be up-dated by radar coverage of the lunar surface at nadir, from which the observed backscatter should have identical amplitudes seen through both the H and the V channels. Any difference can be inverted to evaluate the relative amplitude calibration constant. In addition, the mission plan calls for relative amplitude calibration through a cooperative transmission and reception between the spacecraft and an Earth-based radar observatory. These data will be posted on the PDS when available. (If more specific information is needed, please consult the Mini-RF Calibration Plan.)

4.2.2.2    Phase calibration

The Mini-RF radar data product is comprised of the amplitude (or magnitude squared) of the H and the V channels of the dual-polarized receiver, and also the cross-product of the complex H and V amplitudes. The cross-product is one representation of the phase to be calibrated. These data are necessary and sufficient to form the 2x2 coherency matrix of the backscattered field, which is alternatively represented by the Stokes parameters, four real numbers. The first Stokes parameter is the total backscattered power (see Amplitude Calibration). Under the operational assumption that the radar transmits circular polarization, the relative phase (in the cross-product) is central to the third and the fourth Stokes parameter. Relative phase calibration consists of evaluating the corrective phase rotation constant of the H complex amplitude relative to the V complex amplitude such that the average phase difference between them is +/-90 degrees (whose sign depends on whether right- or left-circular polarization was transmitted) under the condition that the average reflecting surface is specular. The starting position for relative phase calibration is the set of pre-flight system data, coupled with in-flight measurements based on the radar's calibration references (see Amplitude Calibration).  During the mission, relative phase calibration will be up-dated by radar coverage of the lunar surface at nadir, from which the observed averaged backscatter should have known relative phase between the H and the V channels. Any difference can be inverted to evaluate the relative phase rotation calibration constant. In addition, the mission plan calls for relative phase calibration through a cooperative transmission and reception between the spacecraft and an Earth-based radar observatory. Calibration products are included in with the PDS archive volume.

4.2.3    SAR Science Data Processing

There are three levels of SAR Forerunner data products produced while the instrument is in SAR (Burst) mode, which are archived at the PDS: level 1, level 2, and level 3 (mosaics). The data are created in the cross-product format in either the baseline or zoom resolution modes with the square pixel spacing aspect ratio. Additionally, there are ground calibration and ancillary products. All are generated at the POC. Each product will have a unique file name and follow the file naming convention given in section 4.7.1. The processed science data products are provided in little-endian format (PC_REAL).

The processing of SAR data into imagery involves the following 3 broad processes.

·       Level-0 Processing

·       Level-1 Processing

·       Level-2 Processing

·       Level-3 polar mosaic generation

4.2.3.1    Level-0 Processing

The level-0 processing is an intermediate step in the production of deliverable SAR products. The resulting level-0 products are not scientifically useful in and of themselves, so they are not archived; however, they are mentioned here to aid in the understanding of the deliverable products. The level 0 processing steps involve the following:

·       Telemetry Packets Processing (typically CCSDS format)

·       Processing of available on-board calibration and housekeeping data

·       Meta-data Extraction (reading of relevant radar parameters from science data header, reading of ephemeris/attitude/time correlation from relevant files)

·       Parameter Estimation (Doppler centroid and rate estimation for the data strip, geo-location, range and azimuth spectra, raw data histogram)

4.2.3.2    Level-1 SAR Processing

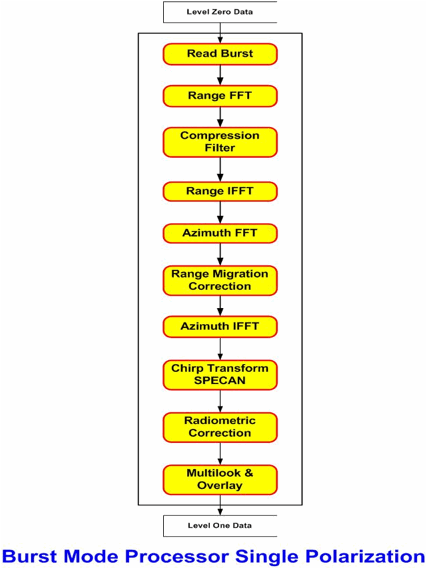

The flow chart for the SAR (Burst) Mode processor for data acquired in one polarization only is show in Figure 2 below. The processing consists of the following major steps:

• Range Compression
• Range FFT
• Compression Filter
• Range IFFT
• Azimuth Compression
• Azimuth FFT
• Range Migration Curvature Correction
• Slant Range to Ground Range Conversion
• Azimuth IFFT
• Chirp Transform SPECAN
• Radiometric Compensation
• Range radiometric compensation
• Azimuth radiometric compensation
• Multi-look Overlay

Figure 2 The SAR (burst) mode processor.

4.2.3.3    Level-2 SAR Processing

The level 2 processing steps involve the following:

·          Generation of the corners of the output level-2 image in the chosen projection. The corners serve to provide processing bounds for the image strip to be ortho-rectified.Image.

·          Formation, wherein the L1 image, and optionally an available DEM or GCP file(s) are used to project the image into desired projection.

4.2.4    Scatterometry Science Data Processing

Scientifically useful scatterometry data were not acquired due to the premature termination of the Chandrayaan-1 mission; therefore, only a raw scatterometry product that was not collected over a lunar pole and is useful only for calibration purposes is included in the archive.

4.3    Archived Data Products

The format and organization of the archived science, calibration, and ancillary products are described in this section. Metadata accompanies the raw PDR and CDR data products in a Vexcel^®-developed human and machine-readable structured text format called “CONI.” These metadata are stored in parameter files of the same name as the data product, except that the file name suffix is .TXT. The associated PDS label contains a reference to the parameter file. The tables in this section contain detailed descriptions of the product files. The Num Files column in the tables indicates the number of files, which make up the specific product.

4.3.1    Raw Data

The raw Packetized Data Records (PDRs) are in the form of raw binary telemetry received from ISRO in Consultative Committee for Space Data systems (CCSDS) packet format, which have been extracted from frames downlinked from the instrument. PDRs have duplications removed and include any ancillary information needed to understand what is in a given packet. They are retained so that future researchers can reproduce the higher-level products if they so desire. These data will not be reformatted or processed further and are delivered to the PDS with detached minimal PDS labels. Because the higher-level products can be reprocessed as often as desired, there may be a one-to-many relationship a raw data product to a processed data product.

The formats of these packets are identical, but their contents differ. Each of these packets is composed of five segments: the CCSDS Primary Header which contains packet identification information, the CCSDS Secondary Header which contains the packet time stamp, the Science Header which contains associated metadata, the Science Data which contains the data samples, and a trailer (“Other Data”) which contains transmission information. Byte values are 8-bits long, Integer values are 32-bits long, short (integers) are 16-bits long, and floating point values are 32-bit IEEE real numbers. These data only are provided in big-endian format.

The science data are time-ordered and consist of a set of two-byte samples or interleaved vertical (V) and horizontal (H)-polarization channel data contained within a pulse. The first byte of the sample contains the V-channel value and the second the H-channel value. There can be a maximum of 1,229 samples per pulse. The formats for the SAR and scatterometry data packets are the same. They differ only in that scatterometry packets have APID 12 (decimal).

The packet CCSDS Secondary Header contains the timestamp for the packet. The Coarse Time field is an MET stored in a 48-bit 1750-format long floating point number. The SCLK kernel provided with the archive will contain the information needed to translate this value.

Table 5 Layout of the raw Data PDRs, both SAR and scatterometry modes. Unlike the other data products, the raw PDR files are delivered in big-endian format.

Table 6 Files containing the raw Data PDRs (DATASET_ID: CH1-ORB-L-MRFFR-1-PDR-Vn.n).

4.3.2    SAR Mode Products

Each pixel in the cross product burst contains like power intensities (HH*, VV*) and the cross power intensity (HV*). The “H” and “V” notation as used here is not to be confused with broadcast and receive polarization.

4.3.2.1    Level-1

The level-1 data products are level-1 Calibrated Data Records (CDRs). The POC produces level-1 SAR CDRs by ingesting the level-0 EDRs and associated level-0 ancillary files into the SAR processor (level-0 data are intermediate products generated from raw (PDR) products. Level-0 data are not archived in PDS.). The level-1 CDRs are SAR images in range and azimuth orientation with pixel values in beta naught, which have been radiometrically and polarmetrically calibrated. Each cross-product image file contains simple lines of pixels. Each pixel consists of four 4-byte floating point numbers for a total of 16 bytes. The first two floating point numbers are the image intensity values for the horizontal (H) and vertical (V) channel receive. The second two numbers are the real and imaginary parts of the single complex number which gives the cross power intensity image between the H & V receive. H & V represent the complex amplitudes of the horizontal and vertically polarized backscatter respectively. An ‘*’ represents a complex conjugate of H or V. The level-1 products are the lowest level usable science data products.

Table 7 Level-1 SAR data products. IMG and DAT files are binary instrument data and TIF are TIFF (DATASET_ID: CH1-ORB-L-MRFFR-4-CDR-Vn.n).

4.3.2.2    Level-2

The level-2 burst mode data products are CDRs that the POC produces by ingesting the level-1 CDRs into the level-2 SAR processor. The level-2 CDRs differ from the level-1 products in that they are orthorectified and are re-sampled into map projections. Typically, images of regions between ±79° of the lunar equator will be rendered into equirectangular projections. Images of regions closer to the lunar poles will be rendered into oblique cylindrical projections. The “equator” of the map projection will correspond to the line of longitude that the subspacecraft point crossed at the equator before the data collection. These will be archived both at the POC and at the PDS. Each pixel is of the same data type as that of the level-1 image. Seven derived products, sometimes referred to as “daughter products” are included along with each level-2 CDR. These daughter products include four stokes parameter files, a circular polarization ratio file, a same sense polarization ratio products, and an opposite sense polarization ratio product.

4.3.2.2.1    Stokes Parameters

All level-2 CDR image products are each accompanied by four Stokes parameters files. Mini-RF transmits a right circular polarized signal, and receives Horizontal and vertical polarized signals, and the phase between the polarizations. The level-2 file consists of four pieces of information per pixel. The received power on the horizontal polarization (E_RH), the received power in the vertical polarization (E_RV) and the real and imaginary portions of the cross product between the two polarization signals (Re E_RH E_RV^* & Im E_RH E_RV^* ).

The first Stokes parameter, defined as S₁ = <|E_LH|² + |E_LV|²>, represents the total power or total intensity of the received field.

The second Stokes parameter, defined as S₂ = <|E_LH|² - |E_LV|²>, represents the difference between the horizontally and vertical components of the polarized portion of the received electromagnetic field.

The third and fourth Stokes parameters are defined as S₃ = 2 Re< E_LH E_LV^*> and S₄ = -2 Im < E_LH E_LV^*>, respectively. They represent respectively the cosine and the sine of the average phase between the horizontally and vertically polarized components of the received field.

4.3.2.2.2    Polarization Products

4.3.2.2.2.1    Same-sense circular polarization (SC)

Mini-RF transmits two orthogonal, linearly polarized waves with a phase shift of (nominally) one quarter of the wavelength, and the resulting superposition of these two forms a (nominally) circularly polarized beam. The same sense circular polarization product describes the polarization state of the received field that has an identical polarization to the transmitted beam. This product is calculated as one half of the difference between the Stokes S₁ and S₄ parameters (SC = 0.5*S₁ – 0.5*S₄).

4.3.2.2.2.2    Opposite-sense circular polarization (OC)

The opposite sense circular polarization product describes the polarization state of the received field that has the opposite circular polarization to the transmitted beam. This product is calculated as one half of the sum of the Stokes S1 and S4 parameters (OC = 0.5*S₁ + 0.5*S₄).

4.3.2.2.2.3    Circular polarization ratio (CPR)

This dimensionless parameter is the ratio of the same sense circular polarization to the opposite sense circular polarization (CPR = SC / OC). The average CPR value of the entire lunar surface is on the order of 0.3. CPR values for certain types of surface deposits may be either anomalously low (near zero for very smooth terrain) or anomalously high (>1.0 for blocky large-scale rough features). High CPR also is due to volumetric backscattering from thick deposits of frozen volatiles, such as water ice.

Degree of polarization (m): The fraction of radar backscatter that is polarized is given by the ratio m = (S₂² + S₃² + S₄²)^1/2/S₁. The average value of m at the moon is about 0.6.

Table 8 Level-2 SAR data products (DATASET_ID: CH1-ORB-L- MRFFR-4-CDR-MAP-Vn.n).

4.3.3    Level-3 Polar Mosaics

The level-3 products are Derived Data Records (DDRs) generated from multiple level-2 CDRs. They are mosaics that the POC produces by ingesting the level-2 Stokes parameter and circular polarization files into the ISIS software. Two level-3 mosaics are provided for each lunar pole (i.e., regions north of 80° latitude or south of -80° latitude), one constructed from circular polarization ratio data and the other from the stokes 1 parameters data. Unlike the lower-level products, these are composed of data sets collected during multiple acquisitions and are produced manually using the ISIS software provided by the Astrogeology branch of the USGS. The final ISIS products are archived at the PDS. Level-3 is the final stage of data processing performed at the POC. Each polar mosaic is accompanied by a reduced-size “quick look” JPEG image. These are archived both at the POC and at the PDS.

Table 9 Level-3 mosaic data products produced using the USGS ISIS software (DATA_SET_ID CH1-ORB-L-MRFFR-5-CDR-MOSAIC-Vn.n).

4.3.4    Ancillary Data Products

Ancillary data accompanies the science data and are also archived at the POC and the PDS. They too will have detached PDS standard labels.

4.3.4.1    Instrument Housekeeping Data

The Instrument Housekeeping Data contain information about the state of the instrument. The data are provided in comma separated variable (CSV) text files. The exact contents of this may vary depending on data rate and other factors. See Table 10 for a description of the ancillary data product, which contains these data.

Table 10 Instrument Housekeeping data.

4.3.5    Calibration Data Products

Calibration data products used in processing consist of raw, packetized data records received from the Mini-RF instrument on-board the spacecraft and produced by calibration activities using the Green Bank Radio Telescope in West Virginia. These are described in papers referenced in sec. 2.

Table 11 Calibration data products.

4.3.6    SPICE Kernels

The SPICE Kernels are structured parameter files that describe, among other things, the ephemeris and attitude of the spacecraft, the spatial orientation of the instrument, the ephemeris and physical parameters of the Earth, Moon and other natural bodies in the Solar System, the relationship between spacecraft time and time as measured on Earth, and the locations and orientations of ground stations. Some of these files are standard products generated by the NAIF team at JPL and are not mission specific. Others are produced specifically for a particular mission or instrument. Some of these files are binary and others are text. The SPICE kernels generated for the Chandrayaan-1 mission and Forerunner (Mini-SAR) instrument will be included in this archive in the GEOMETRY directory.

SPICE kernel files are intended for use with the SPICE software library. This is a software product from the Navigation and Ancillary Information Facility (NAIF) at the NASA Jet Propulsion Laboratory (JPL) that contains functions that perform computations for space mission-related and astronomical applications. There are several types of SPICE kernel: Attitude and pointing kernels (CK), ephemeris kernels (SPK), planetary constants kernels (PK), frame kernels (FK), leap second kernels (LSK), spacecraft clock coefficients kernels (SCLK), instrument kernels (IK), and error kernels (EK). The Forerunner archive does not include IKs or EKs. Some of these are created by the POC with data supplied by ISRO and JPL, and some are standard generic products provided by NAIF.

SPICE meta-kernels are used for loading other kernels. They contain a list of kernels to be loaded for a given purpose and the order in which they are to be loaded. Meta-kernels are typically provided to the SPICE library furnsh() function that loads kernels. They are typically included in the EXTRAS directory of an archive volume and do not have associated PDS labels.

SPICE kernels are typically delivered in as separate archive volume to the NAIF PDS node (as is the case with Mini-RF on LRO). Forerunner deviates from this practice in that all kernels are being included in the regular archive volume archived at the Geosciences node.

The standards for archiving SPICE kernels and supporting files at the NAIF PDS node differ somewhat from the general PDS standards. For the kernels only, the NAIF standards are followed. These differ in that all kernels have simultaneously both attached and detached PDS labels; text kernels have Unix-style line-feed <LF> end of line (EOL) terminators, not the PDS-standard PC-style <CR><LF> EOLs (All accompanying files such as detached labels have the PDS-standard EOLs); kernels provided by NAIF have all lower-case file names. NAIF kernels retain their original file names. Binary kernels, although generated and used at the POC in little-endian byte order form, are converted to big-endian byte order per NAIF standards.

All kernels, except for the metakernel, are stored in subdirectories within the GEOMETRY directory. Each kernel subdirectory contains an *info.txt file that describes the kernel(s) in detail.

CKs constitute the greatest portion of delivered kernels. They contain attitude data obtained primarily from on-board quaternion data that are appended to the end of received Mini-SAR telemetry. The Mini-SAR data processing system converted these data into CKs containing attitude and attitude rates information. There are a few data intervals for which no quaternion-based ephemeris is available. To cover these periods, CKs containing attitude data provided by ISRO and interpolated attitude rates were generated. See the ckinfo.txt file in the GEOMETRY/data/ck/ directory for a description of these files.

Metakernels are provided that load either the predicted or the definitive CKs. They are mutually exclusive.

Table 12 SPICE kernels delivered with the product sets. Instrument (IK) and error (EK) kernels are not provided for Forerunner.

4.3.7    PDS Archive Files

There is a set of standard files that accompany a data product to be archived at the PDS. These files and some supporting documents are described here.

Table 13 PDS standard files that contain descriptive and indexing information about the archive.

4.4    Data Product Archiving

The Mini-RF POC is responsible for science data product generation, validation, and archiving. The POC supports and works with the ISRO Chandrayaan-1 mission operations, the Forerunner science team, and the PDS.

4.4.1    Data Flow

Prior to science phase of the Chandrayaan-1 mission, the POC produced sample data products from raw telemetry generated by spacecraft and instrument simulators operated by ISRO. During the mission, the spacecraft control center at ISRO received the science data downlink from the spacecraft on one channel and the housekeeping data on a second channel. ISRO sent the raw data from the Forerunner instrument to the POC through a data link. At the POC, the Vexcel^® SAR and Calibration processors processed the raw SAR data through levels 0, 1, and 2. Level-3 mosaics were produced using the ISIS software from the USGS. Software applications developed specifically for and running only at the POC facilitate this processing and package the data for later archiving at the PDS.

The Vexcel^® SAR processors consist of the SKY level-0 processor, the SWATH level-1 processor, and the ORTHO level-2 processor. Each processor’s output products are the input to the next level’s processor. Calibration is performed by the Vexcel^® CALPRO processor.

4.4.2    Labeling and Identification

With the exception of the raw data, all data products described in this document which are to be delivered to the PDS are accompanied by full PDS standard labels. Detached minimal labels accompany the raw data. The PDS labels are detached text files, which describe the associated product file. There will be one label file for each product file. These labels conform to the PDS version 3 standards. A product ID in its PDS label uniquely identifies each product. The file name may be used for the product ID as long as it is unique.

SPICE kernels are delivered with both attached and detached PDS labels in accordance with NAIF conventions. This applies to both binary and text kernels. It should be noted that the text SPICE kernels themselves do not have the PDS-standard <CR><LF> end of line (EOL) terminators. They have the Unix-type <LF> EOLs. This is also in accordance with NAIF conventions.

The PDS label describes and provides ancillary information about the data product. They are written in a structured text language called Object Description Language (ODL). Examples of a Forerunner PDS label are given in section 4.8.2. Note that not all of the keywords are necessarily present in a given PDS label.

4.5    Standards Used in Generating Data Products

4.5.1    PDS Standards

The Forerunner science and calibration data products are constructed according to the data object concepts developed by the PDS. By adopting the PDS format, the data products are consistent in content and organization with other planetary image collections. In the PDS standard, the data product file is grouped into objects with PDS labels describing the objects. All PDS labels are written in ODL, a subset of the Parameter Value Language (PVL), which is a structured text format (Applicable Document 1). The Forerunner data products contain:

1. PDS Label Files describing the specific product (including external data files)
2. SAR or Scatterometry image data files.
3. Stokes parameter files.
4. Calibration data files.
5. Ancillary files containing housekeeping data, lunar geometric data, and metadata in an ASCII table format.
6. Mission and instrument-specific SPICE kernel files.
7. Documentation.

PDS labels also accompany SPICE kernels.

The image data will be delivered in an uncompressed form.

4.5.2    Time Standards

All time values in the PDS labels shall be given in Coordinated Universal Time (UTC). The time in UTC shall be represented in ISO calendar format standard: yyyy-mm-ddThh:mm:ss.ss eg “2006-08-14T15:02:10.12”. The spacecraft time in Mission Elapsed Time (MET) shall also be given in the science product labels in the form of SPICE spacecraft clock (SCLK) strings. An SCLK string has the form “<partition>/<MET seconds>:<MET subseconds>”, where partition is the current spacecraft clock partition, MET seconds is the mission elapsed time in seconds, and MET subseconds is the vernier counter representing a fraction of a second. An example of an SCLK string is “1/123456789:123456”.

4.5.3    Computational Assumptions

Table 14 lists the computational assumptions for the geometric and viewing data provided in the PDS label. There are two reference frames (coordinate systems) in use: 1) the International Celestial Reference Frame (ICRF), also frequently called the J2000 or the E.M.E. 2000 frame, used for target and spacecraft position and velocity vectors, and instrument pointing and 2) a lunar body-fixed reference frame, used for specifying certain viewing geometry vectors and target location. The lunar body-fixed frame used by the Mini-RF investigation is the Mean Earth/Polar Axis frame (commonly abbreviated as ME), as realized using NASA’s SPICE products (Frames Kernel).

Table 14 Computational assumptions

4.5.4    Archiving Standard

The science data products will be archived by orbit number and the complete archive will consist of approximately 720 orbits.

4.5.5    Data Storage Conventions

All text files are of standard ASCII format and in accordance with PDS standards, each line in a text file terminates with a carriage return (ASCII 13) and line feed (ASCII 10) end of line (EOL) marker (i.e., <CR><LF>).

4.6    Data Validation

Basic data validation is performed at the POC and consists of the following:

• POC staff check the data products for conformance to this document and the Archive Volume SIS, and for valid science content.
• Generation of data products and volumes, together with validation are completed within the required validation period of six months from the availability of processing input data.
• Prior to delivery of the products, PDS representatives and other interested parties review a sample product set generated by the POC and may request changes to the product set as necessary.
• The data pipeline is also reviewed as part of the validation process.
• In accordance with PDS requirements, the design of the data products as described by this Data Product SIS, and as shown by a set of sample products, undergoes a peer review prior to the beginning of processing.. A review committee made up of a few scientists who are knowledgeable in the area along with representatives from the POC and the PDS evaluate the products. They may produce a list of liens against the product set that will be resolved prior to PDS archiving.

4.7    Data Product Structure and Organization

4.7.1    File Naming

The file names developed for any PDS archive are restricted to a maximum 27-character base name and two or three-character extension name with a period separating the file and extension names. Also known as the “27.3” format, this is compliant with the ISO 9660 level-2 specification, which is required by PDS. All file names for products archived at the PDS contain only capital letters, numerals, and underscores (except for the one period ‘.’ which separates the file basename from the file extension). All files begin with the one character instrument identifier F (Forerunner) that is the file designation for all Forerunner files. In accordance with PDS standards, all file names are in capital letters. The three-character file extension for each type of product file is given in the File Extension column of each product description table in section 4.2.2.

4.7.1.1    File Naming Conventions for the Orbit-Based Science Data Products

The following table describes the detailed naming convention used for the raw, level-1, level-2, and level-3 data products. The Vexcel^® processors produce the level-1 and level-2 products.

Format: Mfm_ooooo_ltt_abu_ccdeee _Vv.ext

M = Indicates the instrument.

L = LRO

F = Forerunner

B = Both

f = Frequency band

       S = S-band

       X = X-band

       B = Both

       N = N/A

m = Radar mode

       B = Baseline SAR

       Z = Zoom

       A = Arecibo Radio Telescope Calibration

       G = Green Bank Radio Telescope Calibration

       C = Other Calibration

       O = Other (housekeeping, etc.)

ooooo = The orbit number in which the data acquisition began. Numeric, range 00001…99999.

l = Processing level

       R = Raw PDR

       1 = Level-1

       2 = Level-2

       3 = Level-3

tt = File type

       PD = Packetized Data Records

       CD = Calibrated Data Records

       S1 = Stokes Parameter 1 File

       S2 = Stokes Parameter 2 File

       S3 = Stokes Parameter 3 File

       S4 = Stokes Parameter 4 File

       SC = Same-Sense Polarization Image File

       OC = Opposite-Sense Polarization Image File

       CP = Circular Polarization Ratio image File

HK = Instrument Housekeeping data (Associated with

     RAW data only)

a = projection

       O = Oblique cylindrical

       E = Equirectangular

       P = Polar stereographic

       X = N/A (for raw, level-1, housekeeping, cal, etc.)

b = pixel resolution bin scale in pixels per degree (ppd)

       A = 1 ppd

       B = 2 ppd

       C = 4 ppd

       See Table 15.

       X = N/A (calibration or housekeeping data)

Table 15 Association of letter-designated bins for pixel resolutions.

u = bit type and scaling

       U = Unnormalized floating point

       F = Normalized floating point

       B = Byte

       X = Unspecified

cc = Lunar center latitude to nearest whole degree

       Numeric value range 00…90.

       XX = N/A or Unknown

d = hemisphere of latitude

       N = North latitude

       S = South latitude

       X = N/A

eee = Lunar center longitude to nearest whole degree

       Numeric value range 000…359.

       XXX = N/A or Unknown

v = Product version number. Numeric range 1…9.

ext = Product type (complies with PDS conventions)

       IMG = Processed image file

       DAT = Unformatted binary data (e.g., raw files)

       JPG = JPEG formatted browse images

       TXT = Unstructured text data (e.g., parameter

              files)

       CSV = Comma Separated Value text files

              (housekeeping)

       LBL = PDS label file

In the case of the level-2 products, the latitude and longitude fields in the file names match those of the corresponding level-1 products. Because the level-2 products are map-projected, their center coordinates will sometimes differ from those of the level-1 products from which they derive. For consistency, the coordinate values in the level-2 file names will sometimes differ slightly from the values in their PDS labels.

The following is an example file name of a Mini-RF SAR mode raw data product. It is baseline SAR, S-band, raw data, packetized data record, byte format, no projection, 75 m/pixel resolution, center coordinates 82ºN, 231º, orbit 512, version 1.

FSB_00512_RPD_XJB_82N231_V1.DAT

The following is an example file name of a Mini-RF SAR mode level 2 CDR data product. It is zoom mode, X-band, level 2 processed, calibrated data record, oblique cylindrical projection, 512 pixels/degree resolution, unnormalized floating point format, center coordinates 82ºN, 231º, orbit 617, version 3.

FXZ_00617_2CD_OJU_82N231_V3.IMG

The following is an example file name of a Mini-RF SAR mode level 2 stokes 3 data product. It is baseline SAR mode, S-band, level 2 processed, stokes parameter, simple cylindrical projection, unnormalized floating point format, 512 pixels/degree resolution, center coordinates 82ºN, 231º, orbit 512, version 2.

FSB_00512_2S3_EJU_82N231_V2.IMG

The following is an example file name of a Mini-RF calibration data product. It is a raw product collected using the Green Bank Radio Telescope. The spacecraft orbit number is 975, it is a raw packetized data record product, bit type is binary, the location on the Moon is not specified, and it is version 1.

FSG_00975_RPD_XXB_XXXXXX_V1.DAT

The following is an example file name of a Mini-RF Forerunner polar mosaic, S-band, level 3, cicular polarization, unnormalized floating point, north pole mosaic product, 2048 ppd, version 1.

FSB_XXXXX_3CP_PJU_90N000_V1.IMG

All files have a corresponding PDS label of the same name except for a suffix ending .LBL.

4.7.1.2    File Naming Convention for Calibration Files

Forerunner calibration files contain raw packets and are similar to regular raw science data products. The naming convention is as follows:

Format: Ffm_yyyyMMddhhmm_Vvv.ext

F = Forerunner

f = Frequency band

       S = S-band

       X = X-band

       B = Both

       N = N/A

m = Radar mode

       A = Arecibo Radio Telescope Calibration

       G = Green Bank Radio Telescope Calibration

       C = Other Calibration

       O = Other (housekeeping, etc.)

ttt = Product type

       RPD = Raw Packetized Data Record

   RHK = Instrument Housekeeping file associated with the calibration data file.

yyyy = Year of data collection

MM = month (1…12) of data collection

dd = day of month (1…31) of data collection

hh = hour (0…23) of data collection

mm = minute (0…23) of data collection

ext = Product type (complies with PDS conventions)

       DAT = Unformatted binary data (e.g., raw files)

       TXT = Unstructured text data (e.g., parameter

              files)

       CSV = Comma Separated Value text files

              (housekeeping)

       LBL = PDS label file

Format: FSA_RPD_yyyyMMddhhmm_vv.ext

The following is an example file name of a Mini-RF calibration data product collected using the Arecibo Radio Telescope. It is an S-band, raw data, packetized data record collected on January 30, 2009 at 19:44h UTC.

FSA_RPD_200901301944_V01.DAT

4.7.1.3    File Naming Conventions for SPICE Kernels

SPICE kernels filenames do not follow a standard naming convention other than the file name extension indicating the kernel type. The kernel file name extensions follow NAIF conventions. See Table 12 for a listing of the archived kernels and their file names.

4.7.1.3.1    Kernel File Name Extensions

Binary Ephemeris (SPK):

File extension: *.bsp or *.BSP

Binary Spacecraft attitude (CK):

File extension: *.BC

Text Spacecraft Clock Coefficients Kernel (SCLK):

File extension: *.TSC

Text Frame Kernels (FK):

File extension: *.tf

Binary Planetary Constants Kernel (PCK):

File extension: *.bpc

Text Planetary Constants Kernel (PCK):

File extension: *.tpc

Text Leap Seconds Kernel (LSK):

File extension: *.tls

Text Metakernel (MK):

File extension: *.tm

4.8    Label and Header Descriptions

4.8.1    PDS Label Parameter Descriptions

The key words used in Forerunner data product PDS labels are described in Table 16 below.

The a_axis_radius element provides the value of the semimajor axis of the ellipsoid that defines the approximate shape of a target body.  'A' is usually in the equatorial plane.

The b_axis_radius element provides the value of the intermediate axis of the ellipsoid that defines the approximate shape of a target body. 'B' is usually in the equatorial plane.

The c_axis_radius element provides the value of the semiminor axis of the ellipsoid that defines the approximate shape of a target body.  'C' is normal to the plane defined by 'A' and 'B'.

The BANDS element indicates the number of bands in the image.

BAND_NAME is the name given to a single band in a multi-band image or image qube.  These identify the components of the radar image pixel.

The band_storage_type element indicates the storage sequence of lines, samples and bands in an image.  The  values describe, for example, how different samples are  interleaved in image lines, or how samples from different bands are arranged sequentially.

The carrier frequency of the SAR in Gigahertz. Intended for use in calculating Doppler shifts.

The center_latitude element provides a reference latitude for the map projections (always 0 for oblique cylindrical) and a center point for level-1 images.

The coordinate_system_name element provides the full name of the coordinate system to which the state vectors are referenced.

There are three basic types of coordinate systems: body-fixed rotating, body-fixed non-rotating and inertial. A body-fixed coordinate system is one associated with a body (e.g., the Moon).

A description of the numeric quality metric given in DATA_QUALITY_ID.

A numeric indicator (-1,0,1,2) of the quality of the data products. See DATA_QUALITY_DESC.

The full name given to the data set.

The maximum numerical value of longitude unless it crosses the

Prime Meridian.

The sensor beam incidence angle. The angle between the local vertical and the spacecraft direction.

The unique identifier for the spacecraft which carries the instrument.

Describes the instrument mode which is identified by the instrument_mode_id element.

The instrument-dependent designation of operating mode.

Identifies the type of latitude (planetocentric) used in the labels, e.g., for the maximum, minimum, center, reference, and standard-parallel latitudes.

The line index of the first pixel that was physically recorded at the beginning of the image array.

The line offset value of the map projection origin position from the line and sample 1,1 (line and sample 1,1 is considered the upper left corner of the digital array).

The total number of data instances along the vertical axis of an image.

Identifies the type of projection characteristic of a given map, always oblique cylindrical in this case.

The scale of the map in pixels/degree. The scale is defined as the ratio of the actual distance between two points on the surface of the target body to the distance between the corresponding points on the map.

One of the three angles defining the oblique coordinate system used in the

OBLIQUE CYLINDRICAL projection.  This is the ordinary latitude in degrees

of the pole (Z axis) of the oblique system.

One of the three angles defining the oblique coordinate system used in the

OBLIQUE CYLINDRICAL projection.  This is the ordinary longitude in degrees

of the pole (Z axis) of the oblique system.

One of the three angles defining the oblique coordinate system used in the OBLIQUE CYLINDRICAL projection.  This is a rotation in degrees around the polar (Z) axis of the oblique system that completes the transformation from

standard to oblique coordinates.

Identifies the direction of longitude (e.g. EAST, WEST) for a planet.  This is EAST for the Moon.

The full_name of the individual mainly responsible for the production of a data set.

The date when a published document was issued.

The zero latitude in a rotated spherical coordinate system that was used in a given map_projection_type.

The zero longitude in a rotated spherical coordinate system that was used in a given map_projection_type.

Identifies the unique identifier associated with a specific release of a data set. All initial releases should use a RELEASE_ID value of '0001'.

The stored number of bits, or units of binary information, contained in a

line_sample value.

The sample index for the first pixel that was physically recorded at the beginning of the image array.  Always 1 for Mini-RF images.

The sample index for the last pixel that was physically recorded at the end of the image array.

The data storage representation of sample value.  PC_REAL for Mini-RF images.

The height on the surface of the target of the projection of a pixel onto the surface.  This is the line spacing in Mini-RF images.

The width on the surface of the target of the projection of a pixel onto the surface.  This is the pixel spacing in Mini-RF images.

The standard deviation (sigma value) of the pixel values in the image array.

The minimum numerical value of longitude unless it crosses the Prime Meridian.

Table 16 The PDS label keywords used in the Mini-RF labels.

4.8.2    Examples of SAR Product PDS Labels

4.8.2.1    Example PDS Minimal Label for a FORERUNNER Raw PDR Data Product

PDS_VERSION_ID = PDS3

LABEL_REVISION_NOTE = "JHU/APL Version 1.0"

RECORD_TYPE = UNDEFINED

FILE_NAME = "FSB_01895_RPD_XIB_85S159_V1.DAT"

DATA_SET_ID = "CH1-ORB-L-MRFFR-1-PDR-V1.0"

DATA_SET_NAME = "CH1-ORB MOON MINI-RF 1 PACKETIZED DATA RECORD

V1.0"

PRODUCER_ID = "JHUAPL"

PRODUCER_FULL_NAME = "MINI-RF POC TEAM"

PRODUCER_INSTITUTION_NAME = "JOHNS HOPKINS UNIVERSITY APPLIED PHYSICS

LABORATORY"

PRODUCT_ID = "FSB_01895_RPD_XIB_85S159_V1"

PRODUCT_VERSION_ID = "1.0"

ORIGINAL_PRODUCT_ID = "Sar_20090413_230617_20101016_004504.down"

SOFTWARE_VERSION_ID = "1.0"

PRODUCT_CREATION_TIME = 2010-11-24T20:46:31

RELEASE_ID = "0001"

MISSION_NAME = "CHANDRAYAAN-1"

INSTRUMENT_HOST_NAME = "CHANDRAYAAN-1 ORBITER"

INSTRUMENT_HOST_ID = "CH1-ORB"

INSTRUMENT_NAME = "MINI-RF FORERUNNER"

INSTRUMENT_ID = MRFFR

TARGET_NAME = MOON

MISSION_PHASE_NAME = "NOMINAL MISSION"

START_TIME = 2009-04-13T23:06:17.147

STOP_TIME = 2009-04-13T23:09:48.147

ORBIT_NUMBER = 0

DESCRIPTION = "Forerunner SAR Packetized Data Record (PDR)

file. The Raw Packetized Data Records (PDRs) are in the form of raw binary

telemetry received in CCSDS packet format, which have been extracted from

frames downlinked from the instrument. PDRs have duplicates removed and

include any ancillary information needed to understand what is in a given

packet. They are retained so that future researchers can reproduce the

higher-level products if they so desire."

/* Metadata Associated with the Image. */

OBJECT = PARAMETER_FILE

^TEXT = "FSB_01895_RPD_XIB_85S159_V1.TXT"

RECORD_TYPE = STREAM

FILE_RECORDS = 16

OBJECT = TEXT

PUBLICATION_DATE = 2010-11-24

NOTE = "A parameter file generated by the raw data

processor."

END_OBJECT = TEXT

END_OBJECT = PARAMETER_FILE

END

4.8.2.2    Example PDS label for a FORERUNNER Level-1 SAR Data Product

PDS_VERSION_ID = PDS3

LABEL_REVISION_NOTE = "JHU/APL Version 1.0"

/* File Identification and Structures. */

RECORD_TYPE = FIXED_LENGTH

RECORD_BYTES = 4768

FILE_RECORDS = 4054

/* Pointer to data object. */

^IMAGE = "FSB_01895_1CD_XIU_85S159_V1.IMG"

/* Identification Data Elements. */

DATA_SET_ID = "CH1-ORB-L-MRFFR-4-CDR-V1.0"

DATA_SET_NAME = "CH1-ORB MOON MINI-RF 4 CALIBRATED DATA

RECORD V1.0"

PRODUCER_ID = "JHUAPL"

PRODUCER_FULL_NAME = "MINI-RF POC TEAM"

PRODUCER_INSTITUTION_NAME = "JOHNS HOPKINS UNIVERSITY APPLIED PHYSICS

LABORATORY"

PRODUCT_ID = "FSB_01895_1CD_XIU_85S159_V1"

PRODUCT_VERSION_ID = "1.0"

ORIGINAL_PRODUCT_ID = "Sar_20090413_230617_20101016_004504.000.cp"

MISSION_PHASE_NAME = "NOMINAL MISSION"

PRODUCT_CREATION_TIME = 2010-11-24T21:14:52

RELEASE_ID = "0001"

MISSION_NAME = "CHANDRAYAAN-1"

INSTRUMENT_HOST_NAME = "CHANDRAYAAN-1 ORBITER"

INSTRUMENT_HOST_ID = "CH1-ORB"

INSTRUMENT_NAME = "MINI-RF FORERUNNER"

INSTRUMENT_ID = MRFFR

TARGET_NAME = MOON

SOURCE_PRODUCT_ID = {

"CHAND1_SCLK_20100924_00.TSC","naif0009.tls"}

START_TIME = 2009-04-13T23:06:13.375771

STOP_TIME = 2009-04-13T23:09:29.6161

SPACECRAFT_CLOCK_START_COUNT = "UNK"

SPACECRAFT_CLOCK_STOP_COUNT = "UNK"

ORBIT_NUMBER = 1895

INCIDENCE_ANGLE = 40.67889125 <deg>

CENTER_FREQUENCY = 2384.15 <GHz>

INSTRUMENT_MODE_ID = "BASELINE_S"

INSTRUMENT_MODE_DESC = "SAR"

SOFTWARE_NAME = "FOCUS"

SOFTWARE_VERSION_ID = "10.0.050"

LOOK_DIRECTION = RIGHT

DESCRIPTION = "Mini-RF (Mini-SAR) Level 1 SAR Calibrated

Data Record (CDR) file. The Level 1 data product is the lowest level of

processed data product that is scientifically useable. It consists of a

calibrated, but not georectified SAR image."

/* The ground range/slant range coefficients. */

CH1:RANGE_COEFFICIENT_SET = ( ("2009-04-13T23:06:13.416",

112940.475313, 5.189554E-01, 3.430374E-06, -1.397972E-11),

("2009-04-13T23:06:27.927", 112940.510515, 5.205986E-01, 3.422579E-06,

-1.398071E-11), ("2009-04-13T23:06:37.600", 112940.540012, 5.216693E-01,

3.417736E-06, -1.398794E-11), ("2009-04-13T23:06:47.675", 112940.502073,

5.228096E-01, 3.411598E-06, -1.397324E-11), ("2009-04-13T23:06:57.346",

112940.509661, 5.238528E-01, 3.406426E-06, -1.396850E-11),

("2009-04-13T23:07:07.018", 112940.530493, 5.249184E-01, 3.401490E-06,

-1.397394E-11), ("2009-04-13T23:07:16.688", 112940.515638, 5.259620E-01,

3.396061E-06, -1.396443E-11), ("2009-04-13T23:07:26.493", 112941.406237,

5.268416E-01, 3.403488E-06, -1.424380E-11), ("2009-04-13T23:07:36.111",

112941.425855, 5.278454E-01, 3.398728E-06, -1.424635E-11),

("2009-04-13T23:07:45.728", 112941.429874, 5.288780E-01, 3.393651E-06,

-1.424484E-11), ("2009-04-13T23:07:55.746", 112941.409010, 5.299426E-01,

3.388003E-06, -1.423340E-11), ("2009-04-13T23:08:05.361", 112941.459204,

5.309327E-01, 3.383779E-06, -1.424731E-11), ("2009-04-13T23:08:14.976",

112941.420464, 5.319135E-01, 3.378225E-06, -1.422763E-11),

("2009-04-13T23:08:24.992", 112941.485679, 5.329242E-01, 3.374136E-06,

-1.424901E-11), ("2009-04-13T23:08:34.433", 112942.633385, 5.335485E-01,

3.403149E-06, -1.534133E-11), ("2009-04-13T23:08:43.169", 112942.634054,

5.344041E-01, 3.398814E-06, -1.533505E-11), ("2009-04-13T23:08:51.904",

112942.634215, 5.352850E-01, 3.394601E-06, -1.534213E-11),

("2009-04-13T23:09:01.003", 112942.634145, 5.361938E-01, 3.389862E-06,

-1.533376E-11), ("2009-04-13T23:09:09.736", 112942.634560, 5.370438E-01,

3.385865E-06, -1.534612E-11), ("2009-04-13T23:09:22.836", 112942.633683,

5.383322E-01, 3.379343E-06, -1.534045E-11) )

/* Data Object Description. */

OBJECT = IMAGE

NAME = "MINI-RF SAR DATA"

CENTER_LONGITUDE = 159.054136 <deg>

CENTER_LATITUDE = -84.580001 <deg>

MAXIMUM_LATITUDE = -79.922956 <deg>

MINIMUM_LATITUDE = -87.22755 <deg>

WESTERNMOST_LONGITUDE = 92.136081 <deg>

EASTERNMOST_LONGITUDE = 177.78264 <deg>

LINES = 4054

LINE_SAMPLES = 298

SAMPLE_TYPE = PC_REAL

SAMPLE_BITS = 32

MINIMUM = 0.000000117

MAXIMUM = 3.441950560

MEAN = 0.178949622

STANDARD_DEVIATION = 0.005778851

SCALED_PIXEL_HEIGHT = 75.000000000000

SCALED_PIXEL_WIDTH = 75.000000000000

CH1:AZIMUTH_RESOLUTION = 157.799081

CH1:RANGE_RESOLUTION = 144.046570

LINE_EXPOSURE_DURATION = 0.048406606719

BANDS = 4

BAND_STORAGE_TYPE = SAMPLE_INTERLEAVED

BAND_NAME = ("H RECEIVE INTENSITY", "V RECEIVE

INTENSITY", "CROSS POWER INTENSITY (REAL)", "CROSS POWER INTENSITY

(IMAGINARY)")

DESCRIPTION = "The ground range detected cross-product

polarimetric image file. Each pixel is represented by two 4-byte floating

point values and an 8-byte complex value (one 4-byte floating point real

and one 4-byte floating point imaginary component) for a total of 16 bytes

per pixel. The first two numbers are the intensity images for H and V

receive, respectively. The complex value is the cross power intensity

image between the H and V receive."

END_OBJECT = IMAGE

/* Metadata Associated with the Image. */

OBJECT = PARAMETER_FILE

^TEXT = "FSB_01895_1CD_XIU_85S159_V1.TXT"

RECORD_TYPE = STREAM

FILE_RECORDS = 2877

OBJECT = TEXT

PUBLICATION_DATE = 2010-11-24

NOTE = "A parameter file generated by the SAR

data processor."

END_OBJECT = TEXT

END_OBJECT = PARAMETER_FILE

END

4.8.2.3    Example PDS label for a FORERUNNER Level-2 SAR CDR Data Product

PDS_VERSION_ID = PDS3

LABEL_REVISION_NOTE = "2010-JHU/APL Mini-RF CH1 Ver. 1"

^IMAGE = "FSB_01895_2CD_OIU_85S159_V1.IMG"

RECORD_TYPE = FIXED_LENGTH

RECORD_BYTES = 5232

FILE_RECORDS = 4057

DATA_SET_ID = "CH1-ORB-L-MRFFR-5-CDR-MAP-V1.0"

DATA_SET_NAME = "CH1-ORB MOON MINI-RF 5 MAP-PROJ CALIBRATED

DATA REC V1.0"

PRODUCER_ID = "JHUAPL"

PRODUCER_FULL_NAME = "MINI-RF POC TEAM"

PRODUCER_INSTITUTION_NAME = "JOHNS HOPKINS UNIVERSITY APPLIED PHYSICS

LABORATORY"

PRODUCT_ID = "FSB_01895_2CD_OIU_85S159_V1"

PRODUCT_VERSION_ID = "V1.0"

ORIGINAL_PRODUCT_ID = "

Sar_20090413_230617_20101016_004504.000.ortho_OC"

PRODUCT_CREATION_TIME = 2010-11-24T22:06:14

RELEASE_ID = "0001"

MISSION_NAME = "CHANDRAYAAN-1"

INSTRUMENT_HOST_NAME = "CHANDRAYAAN-1 ORBITER"

INSTRUMENT_HOST_ID = "CH1-ORB"

INSTRUMENT_NAME = "MINI-RF FORERUNNER"

INSTRUMENT_ID = MRFFR

TARGET_NAME = MOON

SOURCE_PRODUCT_ID = {

"CHAND1_SCLK_20100924_00.TSC","naif0009.tls"}

START_TIME = 2009-04-13T23:06:13.375771

STOP_TIME = 2009-04-13T23:09:29.7613

SPACECRAFT_CLOCK_START_COUNT = "UNK"

SPACECRAFT_CLOCK_STOP_COUNT = "UNK"

ORBIT_NUMBER = 1895

CENTER_FREQUENCY = 2384150000.00000000 <Hz>

INCIDENCE_ANGLE = 40.67889125 <deg>

INSTRUMENT_MODE_ID = "BASELINE_S"

INSTRUMENT_MODE_DESC = "SAR"

SOFTWARE_NAME = "Ortho"

SOFTWARE_VERSION_ID = "10.0.085"

LOOK_DIRECTION = RIGHT

DESCRIPTION = "Mini-RF Level 2 SAR Calibrated Data Record

(CDR) file. The Level 2 data products are orthorectified and are re-sampled

into oblique cylindrical map projected SAR images."

/* Data Object Description. */

OBJECT = IMAGE

NAME = "MINI-RF SAR DATA"

LINES = 4057

LINE_SAMPLES = 327

SAMPLE_TYPE = PC_REAL

SAMPLE_BITS = 32

MINIMUM = 0.000000117

MAXIMUM = 3.441950560

MEAN = 0.178975351

STANDARD_DEVIATION = 0.005720154

SCALED_PIXEL_HEIGHT = 75.0 <m/pixel>

SCALED_PIXEL_WIDTH = 75.0 <m/pixel>

CH1:AZIMUTH_RESOLUTION = 157.799081

CH1:RANGE_RESOLUTION = 144.046570

LINE_EXPOSURE_DURATION = 0.048406606719

BANDS = 4

BAND_STORAGE_TYPE = SAMPLE_INTERLEAVED

BAND_NAME = ("H RECEIVE INTENSITY", "V RECEIVE

INTENSITY", "CROSS POWER INTENSITY (REAL)","CROSS POWER INTENSITY

(IMAGINARY)")

DESCRIPTION = "This image contains multi-valued pixels.

The ground range detected cross-product polarimetric image file resampled

into an oblique cylindrical map projection. Each pixel is represented by

two 4-byte floating point values and an 8-byte complex value (one 4-byte

floating point real and one 4-byte floating point imaginary component) for

a total of 16 bytes per pixel. The first two numbers are the intensity

images for H and V receive, respectively. The complex value is the cross

power intensity image between the H and V receive."

END_OBJECT = IMAGE

/* Map Projection Information. */

OBJECT = IMAGE_MAP_PROJECTION

^DATA_SET_MAP_PROJECTION = "DSMAP.CAT"

POSITIVE_LONGITUDE_DIRECTION = "EAST"

KEYWORD_LATITUDE_TYPE = "PLANETOCENTRIC"

COORDINATE_SYSTEM_NAME = "PLANETOCENTRIC"

COORDINATE_SYSTEM_TYPE = "BODY-FIXED ROTATING"

LINE_FIRST_PIXEL = 1

SAMPLE_FIRST_PIXEL = 1

FIRST_STANDARD_PARALLEL = "N/A"

SECOND_STANDARD_PARALLEL = "N/A"

A_AXIS_RADIUS = 1737.4 <km>

B_AXIS_RADIUS = 1737.4 <km>

C_AXIS_RADIUS = 1737.4 <km>

LINE_LAST_PIXEL = 4057

SAMPLE_LAST_PIXEL = 327

LINE_PROJECTION_OFFSET = 2132.17274252

SAMPLE_PROJECTION_OFFSET = 1064.67276324

MAP_PROJECTION_TYPE = "OBLIQUE CYLINDRICAL"

MAP_PROJECTION_ROTATION = 90.0 <deg>

MAP_RESOLUTION = 404.311333473 <pix/deg>

MAP_SCALE = 0.0750000010231 <km/pix>

CENTER_LATITUDE = 0.0 <deg>

CENTER_LONGITUDE = 0.0 <deg>

REFERENCE_LATITUDE = -85.7004370691

REFERENCE_LONGITUDE = -24.3291519991

MAXIMUM_LATITUDE = -79.898019 <deg>

MINIMUM_LATITUDE = -87.300138 <deg>

WESTERNMOST_LONGITUDE = 91.849345 <deg>

EASTERNMOST_LONGITUDE = 177.781403 <deg>

OBLIQUE_PROJ_POLE_LATITUDE = -0.819834 <deg>

OBLIQUE_PROJ_POLE_LONGITUDE = -76.643089 <deg>

OBLIQUE_PROJ_POLE_ROTATION = 355.779179 <deg>

OBLIQUE_PROJ_X_AXIS_VECTOR = (0.068313,-0.030886,-0.997186)

OBLIQUE_PROJ_Y_AXIS_VECTOR = (-0.970554,0.229365,-0.073593)

OBLIQUE_PROJ_Z_AXIS_VECTOR = (0.230993,0.972850,-0.014308)

END_OBJECT = IMAGE_MAP_PROJECTION

/* Metadata Associated with the Image. */

OBJECT = PARAMETER_FILE

^TEXT = "FSB_01895_2CD_OIU_85S159_V1.TXT"

RECORD_TYPE = STREAM

FILE_RECORDS = 2934

OBJECT = TEXT

PUBLICATION_DATE = 2010-11-24

NOTE = "A parameter file generated by the SAR

data processor."

END_OBJECT = TEXT

END_OBJECT = PARAMETER_FILE

END

The above example is for a level-2 map product in oblique cylindrical projection. Polar images are in this projection. Non-polar images are provided in equirectangular projection and have a slightly different label.

4.8.2.4    Example PDS Daughter Product Label

PDS_VERSION_ID = PDS3

LABEL_REVISION_NOTE = "2010-JHU/APL Mini-RF CH1 Ver. 1"

NOTE = "Mini-RF CH1 circular polarization ratio

product."

^IMAGE = "FSB_01895_2CP_OIU_85S159_V1.IMG"

RECORD_TYPE = FIXED_LENGTH

RECORD_BYTES = 1308

FILE_RECORDS = 4057

DATA_SET_ID = "CH1-ORB-L-MRFFR-5-CDR-MAP-V1.0"

DATA_SET_NAME = "CH1-ORB MOON MINI-RF 5 MAP-PROJ CALIBRATED

DATA REC V1.0"

PRODUCER_ID = "JHUAPL"

PRODUCER_FULL_NAME = "MINI-RF POC TEAM"

PRODUCER_INSTITUTION_NAME = "JOHNS HOPKINS UNIVERSITY APPLIED PHYSICS

LABORATORY"

PRODUCT_ID = "FSB_01895_2CP_OIU_85S159_V1"

PRODUCT_VERSION_ID = "1.0"

ORIGINAL_PRODUCT_ID = "

Sar_20090413_230617_20101016_004504.000.ortho_OC"

MISSION_PHASE_NAME = "NOMINAL MISSION"

PRODUCT_CREATION_TIME = 2010-11-30T20:31:06

RELEASE_ID = "0001"

MISSION_NAME = "CHANDRAYAAN-1"

INSTRUMENT_HOST_NAME = "CHANDRAYAAN-1 ORBITER"

INSTRUMENT_HOST_ID = "CH1-ORB"

INSTRUMENT_NAME = "MINI-RF FORERUNNER"

INSTRUMENT_ID = MRFFR

TARGET_NAME = MOON

SOURCE_PRODUCT_ID = {

"CHAND1_SCLK_20100924_00.TSC","naif0009.tls"}

START_TIME = 2009-04-13T23:06:13.375771

STOP_TIME = 2009-04-13T23:09:29.7613

SPACECRAFT_CLOCK_START_COUNT = "UNK"

SPACECRAFT_CLOCK_STOP_COUNT = "UNK"

ORBIT_NUMBER = 1895

CENTER_FREQUENCY = 2384150000.00000000 <Hz>

INCIDENCE_ANGLE = 40.67889125 <deg>

INSTRUMENT_MODE_ID = "BASELINE_S"

INSTRUMENT_MODE_DESC = "SAR"

SOFTWARE_NAME = "ISIS"

SOFTWARE_VERSION_ID = "3.2.0 | 2010-03-18"

LOOK_DIRECTION = RIGHT

DESCRIPTION = "This dimensionless parameter is the ratio

of the same sense circular polarization to the opposite sense circular

polarization (CPR = SC / OS). The average CPR value of the entire lunar

surface is on the order of 0.3. Certain types of surface deposits can have

either anomalously low (near zero) or anomalously high (>1.0) values."

/* Data Object Description. */

OBJECT = IMAGE

LINES = 4057

LINE_SAMPLES = 327

BANDS = 1

BAND_STORAGE_TYPE = BAND_SEQUENTIAL

OFFSET = 0.0

SCALING_FACTOR = 1.0

SAMPLE_BITS = 32

SAMPLE_BIT_MASK = 2#11111111111111111111111111111111#

SAMPLE_TYPE = PC_REAL

CORE_NULL = 16#FF7FFFFB#

CORE_LOW_REPR_SATURATION = 16#FF7FFFFC#

CORE_LOW_INSTR_SATURATION = 16#FF7FFFFD#

CORE_HIGH_REPR_SATURATION = 16#FF7FFFFF#

CORE_HIGH_INSTR_SATURATION = 16#FF7FFFFE#

END_OBJECT = IMAGE

OBJECT = IMAGE_MAP_PROJECTION

^DATA_SET_MAP_PROJECTION = "DSMAP.CAT"

COORDINATE_SYSTEM_TYPE = "BODY-FIXED ROTATING"

MAP_PROJECTION_TYPE = "OBLIQUE CYLINDRICAL"

A_AXIS_RADIUS = 1737.4 <km>

B_AXIS_RADIUS = 1737.4 <km>

C_AXIS_RADIUS = 1737.4 <km>

FIRST_STANDARD_PARALLEL = "N/A"

SECOND_STANDARD_PARALLEL = "N/A"

COORDINATE_SYSTEM_NAME = PLANETOCENTRIC

POSITIVE_LONGITUDE_DIRECTION = EAST

KEYWORD_LATITUDE_TYPE = PLANETOCENTRIC

CENTER_LATITUDE = 0.0 <deg>

CENTER_LONGITUDE = 0.0 <deg>

LINE_FIRST_PIXEL = 1

LINE_LAST_PIXEL = 4057

SAMPLE_FIRST_PIXEL = 1

SAMPLE_LAST_PIXEL = 327

OBLIQUE_PROJ_POLE_LATITUDE = -0.819834 <deg>

OBLIQUE_PROJ_POLE_LONGITUDE = -76.643089 <deg>

OBLIQUE_PROJ_POLE_ROTATION = 355.779179 <deg>

OBLIQUE_PROJ_X_AXIS_VECTOR = (0.068313, -0.030886, -0.997186)

OBLIQUE_PROJ_Y_AXIS_VECTOR = (-0.970554, 0.229365, -0.073593)

OBLIQUE_PROJ_Z_AXIS_VECTOR = (0.230993, 0.972850, -0.014308)

MAP_PROJECTION_ROTATION = 90.0 <deg>

MAP_RESOLUTION = 404.311333473 <pix/deg>

MAP_SCALE = 0.0750000010231 <km/pix>

MAXIMUM_LATITUDE = -79.898019 <deg>

MINIMUM_LATITUDE = -87.300138 <deg>

EASTERNMOST_LONGITUDE = 177.781403 <deg>

WESTERNMOST_LONGITUDE = 91.849345 <deg>

LINE_PROJECTION_OFFSET = 2132.1727425199 <pixel>

SAMPLE_PROJECTION_OFFSET = 1064.67276324 <pixel>

END_OBJECT = IMAGE_MAP_PROJECTION

END

The above example is for a circular polarization ratio (CPR) product. SSP, OSP, and stokes parameter product labels are similar.

4.8.2.5    Example PDS label for a FORERUNNER Level-3 SAR Data Product

An example of a PDS label for the ISIS-generated polar mosaics is provided below.

PDS_VERSION_ID = PDS3

LABEL_REVISION_NOTE = "2011-JHU/APL Mini-RF CH1 Ver. 1"

NOTE = "Circular Polarization Ratio polar mosaic."

^IMAGE = "FSB_XXXXX_3CP_PJU_90N000_V1.IMG"

RECORD_TYPE = FIXED_LENGTH

RECORD_BYTES = 32428

FILE_RECORDS = 8107

DATA_SET_ID = "CH1-ORB-L-MRFFR-5-CDR-MOSAIC-V1.0"

DATA_SET_NAME = "CH1-ORB MOON MINI-RF 5 POLAR MOSAIC

CALIBRATED DATA REC V1.0"

PRODUCER_ID = "JHUAPL"

PRODUCER_FULL_NAME = "MINI-RF POC TEAM"

PRODUCER_INSTITUTION_NAME = "JOHNS HOPKINS UNIVERSITY APPLIED PHYSICS

LABORATORY"

PRODUCT_ID = "FSB_XXXXX_3CP_PJU_90N000_V1"

PRODUCT_VERSION_ID = "V1.0"

PRODUCT_CREATION_TIME = 2011-01-12

RELEASE_ID = "0001"

MISSION_NAME = "CHANDRAYAAN-1"

INSTRUMENT_HOST_NAME = "CHANDRAYAAN-1 ORBITER"

INSTRUMENT_HOST_ID = "CH1-ORB"

INSTRUMENT_NAME = "MINI-RF FORERUNNER"

INSTRUMENT_ID = MRFFR

TARGET_NAME = MOON

START_TIME = 2009-01-07T18:33:32.415636

STOP_TIME = 2009-04-15T21:25:01.1903

SPACECRAFT_CLOCK_START_COUNT = "N/A"

SPACECRAFT_CLOCK_STOP_COUNT = "N/A"

CENTER_FREQUENCY = 2384150000.0 <Hz>

INSTRUMENT_MODE_ID = "BASELINE_S"

INSTRUMENT_MODE_DESC = "SAR"

SOFTWARE_NAME = "Ortho"

SOFTWARE_VERSION_ID = "10.0.085"

DESCRIPTION = "Circular Polarization Ratio product defined

as the ratio of the same sense circular polarization to the opposite sense

circular polarization (CPR = SC / OS). The Level 3 products are Derived Data

Records (DDRs) generated from multiple Level 2 CDRs. They are mosaics that

are produced by ingesting the Level 2 Stokes 1 parameter and circular

polarization files into the ISIS software. The mosaics are produced for each

lunar pole (i.e., regions above 80 deg. latitude). Unlike the lower-level

products, these are composed of data sets collected during multiple

acquisitions and are produced manually using the ISIS software provided by

the Astrogeology branch of the USGS."

OBJECT = IMAGE

LINES = 8107

LINE_SAMPLES = 8107

BANDS = 1

BAND_STORAGE_TYPE = BAND_SEQUENTIAL

OFFSET = 0.0

SCALING_FACTOR = 1.0

SAMPLE_BITS = 32

SAMPLE_BIT_MASK = 2#11111111111111111111111111111111#

SAMPLE_TYPE = PC_REAL

CORE_NULL = 16#FF7FFFFB#

CORE_LOW_REPR_SATURATION = 16#FF7FFFFC#

CORE_LOW_INSTR_SATURATION = 16#FF7FFFFD#

CORE_HIGH_REPR_SATURATION = 16#FF7FFFFF#

CORE_HIGH_INSTR_SATURATION = 16#FF7FFFFE#

END_OBJECT = IMAGE

OBJECT = IMAGE_MAP_PROJECTION

^DATA_SET_MAP_PROJECTION = "DSMAP.CAT"

COORDINATE_SYSTEM_TYPE = "BODY-FIXED ROTATING"

MAP_PROJECTION_TYPE = "POLAR STEREOGRAPHIC"

A_AXIS_RADIUS = 1737.4 <km>

B_AXIS_RADIUS = 1737.4 <km>

C_AXIS_RADIUS = 1737.4 <km>

COORDINATE_SYSTEM_NAME = PLANETOCENTRIC

POSITIVE_LONGITUDE_DIRECTION = EAST

KEYWORD_LATITUDE_TYPE = PLANETOCENTRIC

CENTER_LATITUDE = 90.0 <deg>

CENTER_LONGITUDE = 0.0 <deg>

LINE_FIRST_PIXEL = 1

LINE_LAST_PIXEL = 8107

SAMPLE_FIRST_PIXEL = 1

SAMPLE_LAST_PIXEL = 8107

MAP_PROJECTION_ROTATION = 0.0 <deg>

MAP_RESOLUTION = 404.31133898866 <pix/deg>

MAP_SCALE = 0.075 <km/pix>

MAXIMUM_LATITUDE = 90.0 <deg>

MINIMUM_LATITUDE = 80.0 <deg>

EASTERNMOST_LONGITUDE = 360.0 <deg>

WESTERNMOST_LONGITUDE = 0.0 <deg>

LINE_PROJECTION_OFFSET = 4054.5 <pixel>

SAMPLE_PROJECTION_OFFSET = 4054.5 <pixel>

END_OBJECT = IMAGE_MAP_PROJECTION

END

5.    Applicable Software

5.1    Software Distribution And Update Procedures

The Forerunner delivery to the PDS does not include software.

6.    Appendices

6.1    Glossary

6.2    Acronyms

APL               (The Johns Hopkins University) Applied Physics Laboratory

ASCII               American Standard Code for Information Interchange

CCSDS             Consultative Committee for Space Data Systems

CDR                 Calibrated Data Record

CK                   Camera-Matrix Kernel (SPICE)

CLM                 Chandrayaan-1 Lunar Module

CODMAC           Committee on Data Management and Computation

CPR                 Circular Polarization Ratio

CSV                  Comma-Separated Values

DEM                 Digital Elevation Model

dB                    Decibels

DDR                 Derived Data Record

EDR                 Experimental Data Record

GSFC               Goddard Space Flight Center

kHz                  Kilohertz

I&T                   Integration and Test

IAU                   International Astronomical Union

IK                     Instrument Measurement Kernel (SPICE)

ISIS                  Integrated Software for Imaging Spectrometers

ISRO                Indian Space Research Organisation

JHU/APL           The Johns Hopkins University Applied Physics Laboratory

JPL                  (The NASA) Jet Propulsion Laboratory

K                      Kelvin

km                    Kilometers

LCP                  Left-Circular Polarized

LSK                  Leap seconds Kernel (SPICE)

m                     Meters

m/s                   Meters per second

ms                    Microseconds (10^-6 seconds)

LRO                 Lunar Reconnaissance Orbiter

M3                    Moon Mineralogy Mapper (instrument)

MET                  Mission Elapsed Time

N/A                   Not Applicable

NAIF                 Navigation and Ancillary Information Facility

NASA                National Aeronautics and Space Administration

NAWC               Naval Air Warfare Center

ns                    Nanoseconds (10^-9 seconds)

ODL                 Object Description Language

OSP                  Opposite-Sense Polarization

PDF                  (Adobe) Portable Document Format

PDR                 Packetized Data Records

PDS                  (NASA) Planetary Data System

POC                 (Mini-RF) Payload Operations Center (at APL)

PVL                  Parameter Value Language

RCP                 Right-Circular Polarized

RDR                 Reduced Data Records

SAR                  Synthetic Aperture Radar

SCLK               Spacecraft Clock Kernel (SPICE)

SSP                  Same Sense Polarization

STF                  (Vexcel^®) SKY Telemetry Format

SPICE               Spacecraft, Planet, Instrument, C-matrix, Events

SPK                  Spacecraft and Planets Kernel (SPICE)

TIFF                 Tagged Image File Format

ULCN2005        Unified Lunar Control Network 2005

USGS               United States Geological Survey

UTC                  Coordinated Universal Time

W                     Watts
